PTFE coated fiberglass with adhesive backed tapes are high performance products that offer excellent release characteristics whilst being able to cope with extreme temperature. They are manufactured with a high temperature resistant surface in pressure sensitive silicone adhesive or non adhesive formats.
PTFE adhesive tapes are often used as a release tape for the protection of sealing jaws and heat-sealing wires on equipment such as bag and L- sealing machines. They can also be found in vacuum and blister packing operations too.

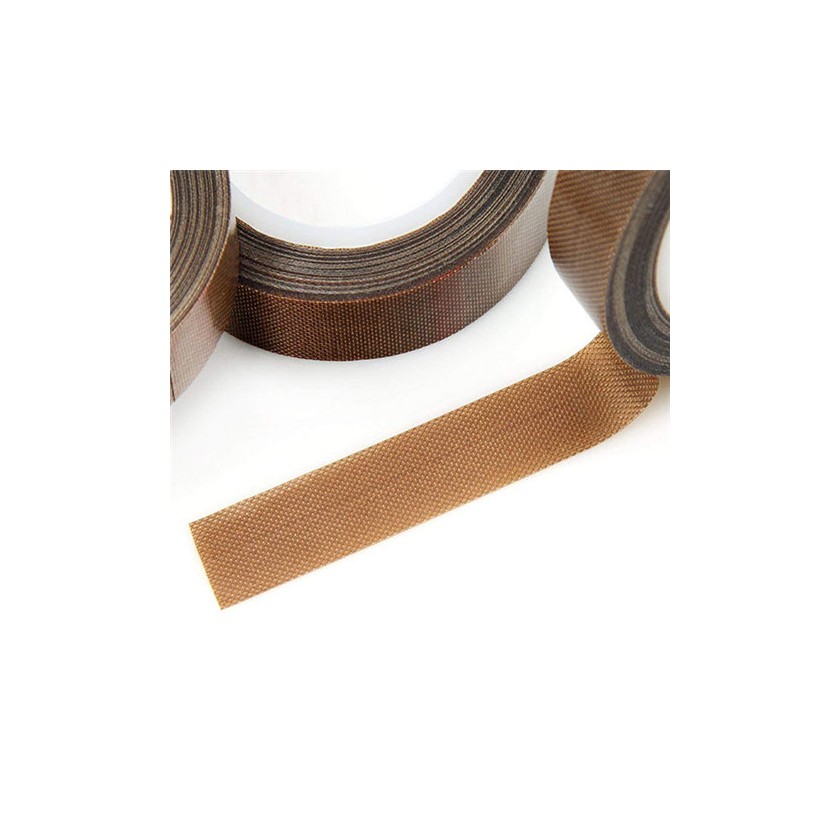

Single surface treated and coated with a high-temperature-resistant, silicone, with pressure-sensitive adhesive coated on back side.VICHEN products can be supplied as long rolls as in picture.
Yellow release liner is applied to the adhesive surface for ease of application and protection long lifetime of fresh adhesive.
We use 100% Dow Coring silicone adhesive which guarantees super high temperature resistance.
Self-wound rolls self adhesive PTFE tape are available (without liner).
PTFE Coated Fiberglass Fabric with Adhesive is a high-performance composite material engineered for durability and versatility in demanding industrial environments.
Model | Thickness | Max Width | Length | Temperature | |
mm | mil | Range | Range | ||
VK7008 | 0.13 | 5.1 | 1250mm | 10-100m | -70-260C |
VK7013 | 0.18 | 7.0 | 1250mm | 10-100m | -70-260C |
VK7015 | 0.20 | 7.8 | 1250mm | 10-100m | -70-260C |
VK7018 | 0.23 | 9.0 | 1250mm | 10-100m | -70-260C |
VK7020 | 0.25 | 9.8 | 1250mm | 10-100m | -70-260C |
VK7025 | 0.30 | 11.8 | 1250mm | 10-100m | -70-260C |
VK7030 | 0.35 | 13.7 | 1250mm | 10-100m | -70-260C |
VK7035 | 0.40 | 15.7 | 1250mm | 10-100m | -70-260C |
