High-frequency, high power density, high efficiency, and low no-load loss.

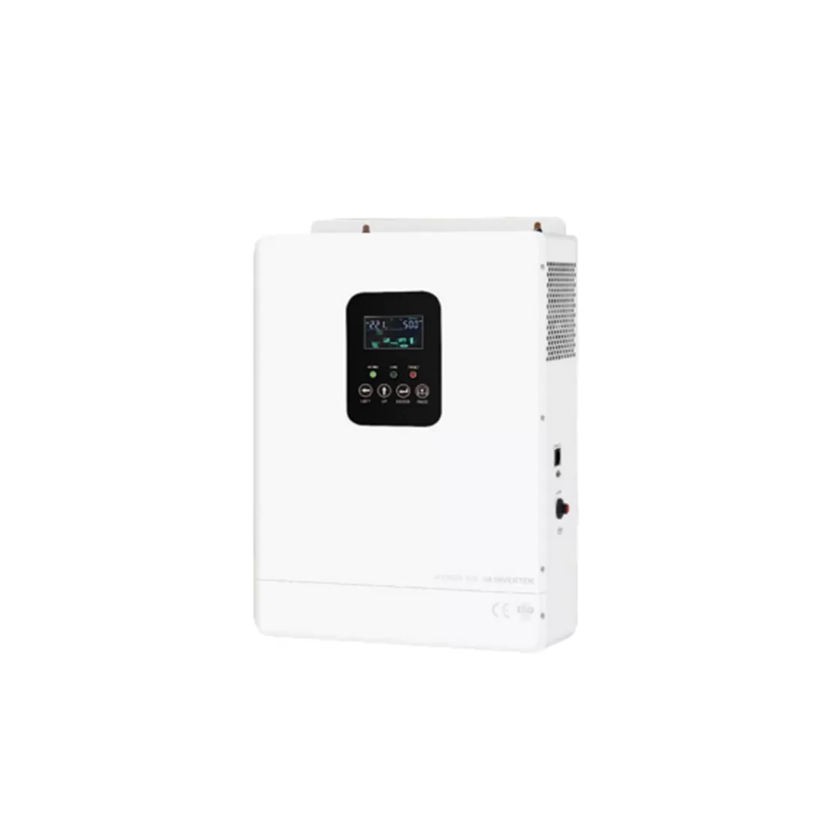

HP PRO-T Series High Frequency Inverter Can setting charge and discharge voltage parameters, suitable for different types of batteries.
Can setting the charging current, the user's battery capacity configuration more flexible.
Can setting the output voltage/frequency to adapt to different grid
Support gas generator input, suitable for different applications
LED+LCD display is easy to operate, and the operating data is show clear.
Technical Parameters
AC input
Rated Input Voltage:220VAC/230VAC/240VAC
AC Input Voltage Range:170VAC-280VAC(UPS mode)/120VAC-280VAC (INV mode)
AC Input Frequency:43H2~53Hz(50Hz)，53H2~63Hz(60Hz)
AC Output
Output Wave:Pure sine wave
Conversion Efficiency(INV mode):94% ( peak value)
Output Voltage/Frequency:220VAC+2%/230VAC+2%/240VAC+2%,50Hz+1% or 60Hz+1% (INV mode))follow input (mains mode)
Other
Protection:Battery undervoltage protection/Battery overvoltage protection/Overload power protection/Inverter output short circuit protection/Temperature protection
Protection Degree:IP20
Display:LCD+LED
Cooling Method:Cooling fan in intelligent control
Communication:RS485 communication, mobile APP (WIFI monitoring or GPRS monitoring)
Working Mode (configurable):Mains priority Battery priority/Photovoltaic priority
Operating Temperature:-15°℃~40℃
Relative Humidity：0%~95%,no condensation
