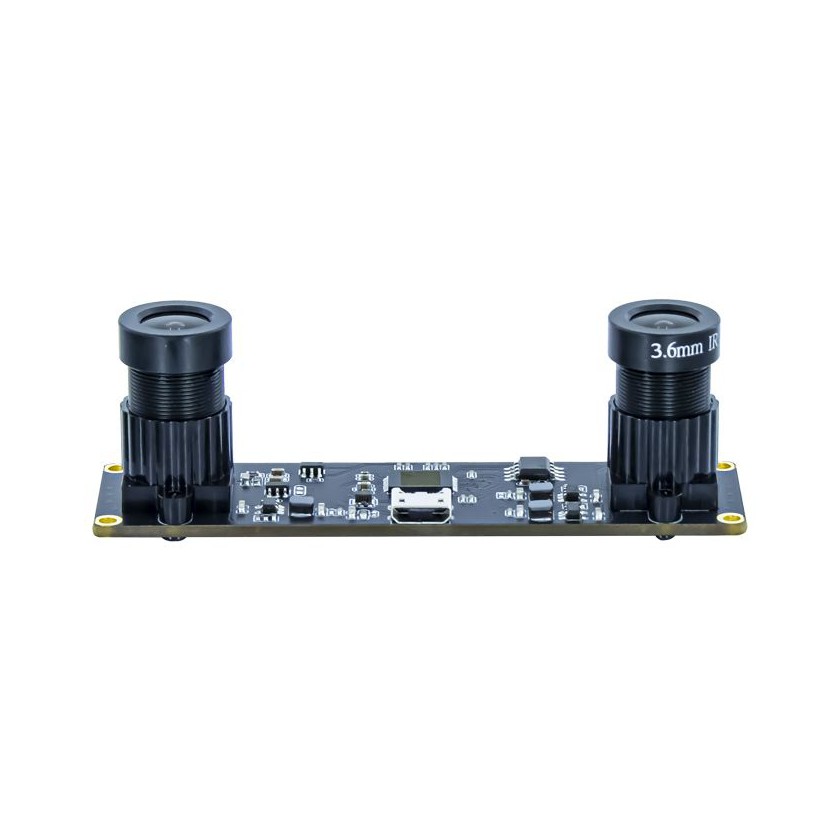

HBVCAM OV4689 4M Pixel HD Dual Lens 3D Synchronous CMOS Camera Module
*Size:80*22*24.5±0.5 MM
*Sensor：OV4689*2(1/3'')
*Maximum Resolution：3840*1080 YUV/MJPEG 30FPS
*Fov：72°（ Lens can be adjustable,different Lens,FOV different）
*Interface:USB2.0
*Focus:fixed
*Output Formats:YUY2/MJPEG
*Supply voltage:DC 5V±5%
*Operating system request:Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc
Specifications
Module No. | HBVCAM-4M2214HD-2 V11 |
Module Size | 80mm × 22mm × 17.50mm±0.5MM |
Temperature (Operation) | -30°C to 70°C |
Temperature (Stable Image) | 0°C to 50°C |
Assembly technique | SMT (ROSH) |
Focus | Fixed |
Object distance | 30CM-infinity |
Resolution | 600LW/PH (Center) |
PCB printing ink | Black |
interface | USB 2.0 |
Power suuply | USB bus power |
supply voltage | DC 5V±5% |
Maximum Power consumption | 1100 mW |
Operating system request | Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc |
Sensor | OV4689 (1/3” ) |
Seneor Package | CSP,Bare Die |
Maximum resolution | 2688*1520 |
Sensitivity | 1900mV /（lux-sec） |
Pixel Size | 2µm x 2µm |
For inquiries, custom solutions, or more information about our 4-megapixel USB cameras, please contact HUIBER. We are committed to delivering imaging excellence tailored to your needs.
