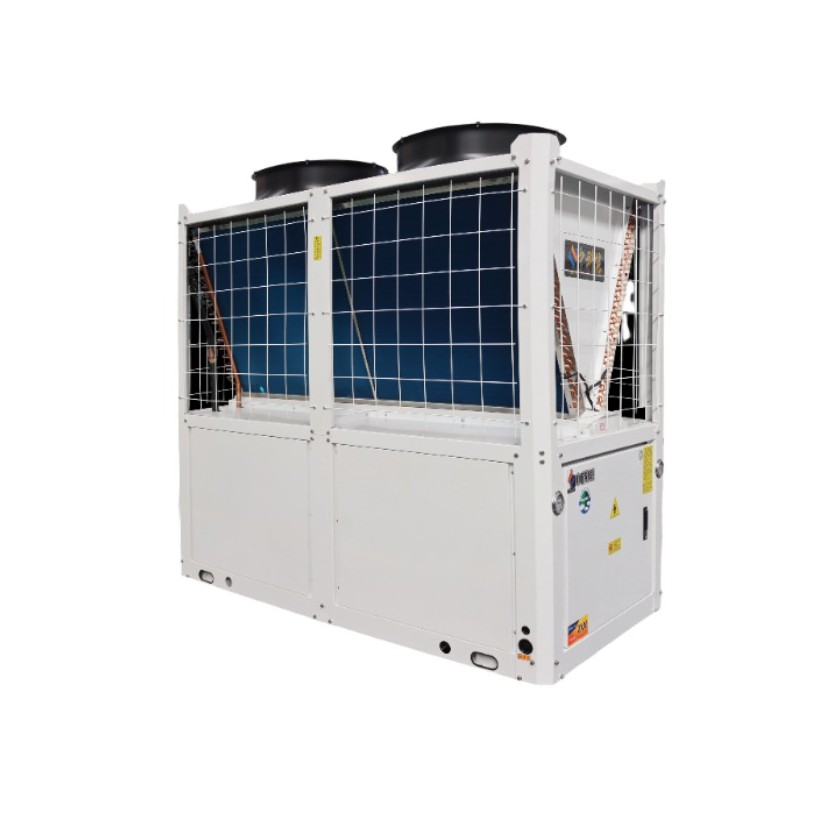

Applicable Places: Normal Temperature Air Source Heat Pump is widely used in comfortable central air-conditioning systems of public facilities such as hotels, shopping malls, office buildings, exhibition halls, airports, gymnasiums, etc., and can meet the different usage requirements of process air-conditioning systems in electronics, pharmaceuticals, biology, textiles, chemicals, metallurgy, electric power, machinery.
Technical Parameter Table
Normal Temperature Air-Cooled Chiller (Hot Water) Unit Performance Parameter Table
Unit Model | CTEFMR65A | CTEFMR140A | CTEFMR280A | |
Cooling Capacity | 65 kW | 140 kW | 280 kW | |
Heating Capacity | 68 kW | 150 kW | 300 kW | |
Power Supply | Three-phase 380V 50Hz | |||
Total Input Power | 20.8 kW | 43.8 kW | 87.6 kW | |
Compressor | Type | Fully Closed Rotary | ||
Refrigerant | Material | R410A | ||
Control Method | Electronic Expansion Valve | |||
Cold/Hot Water | Flow Rate | 11.2 m³/h | 24.1 m³/h | 48.2 m³/h |
Water Side Pressure | 41~46 kPa | |||
Connection Size(DN) | DN50 | DN65 | DN100 | |
External Dimensions | Length (mm) | 2100 | 2300 | 2300 |
Width (mm) | 1100 | 1400 | 2400 | |
Height (mm) | 2000 | 2200 | 2200 | |
Unit Weight(KG) | 660 | 1000 | 1750 | |
Noise Level(dB(A)) | 68 | 70 | 72 | |
ZKN commercial heat pump solutions represent the cutting edge of energy-efficient HVAC for large-scale operations. Specifically designed as high-performance air source heat pump commercial systems, they utilize sophisticated inverter technology to deliver powerful heating, cooling, and sanitary hot water.
