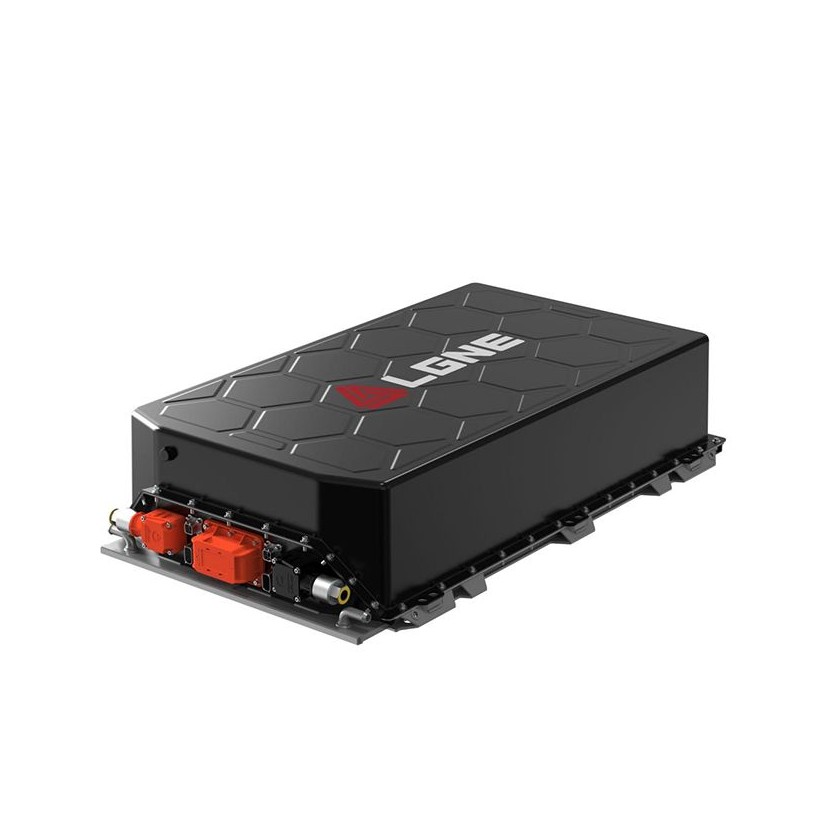

The High Voltage Lithium Battery Pack is a cutting-edge energy storage solution designed to deliver exceptional power, efficiency, and reliability. Built with advanced lithium-ion technology, it offers a higher voltage output and energy density compared to traditional battery systems, making it ideal for applications requiring strong, stable, and long-lasting power.
Parameters
Model Number | 173C-105kWh |
Cathode Materials | LFP |
Nominal Voltage | 608.58V |
Nominal Capacity | 173Ah |
Power Energy | 105.284kWh |
Thermal Management | Heating Film+liquid cooling |
Charging temperature | 0~60℃C |
Operating Temperature(℃) | -30~60℃ |
The charging ratio | 1C |
The discharge rate | 1C |
Weight | 709±20.7KG |
Cycle Life | ≥4000 |
Protection Level | IP67 |
Dimension (L*W*H) | 1060*630*240mm |
173C-105kWh High Voltage Lithium Battery Pack Parameters
High cost-effectiveness, customized development to meet customer needs
Self-developed BMS, OTA remote maintenance, supports 4G communication
Quick charge, high charging and discharging rate
High density, ultimate lightweight design, large 5.module+Composite material box cover
Running for over 20,000 hours, safe and reliable
Bottom liquid cooling, efficient thermal management, deep cycle life of battery cells
Using big data in full process quality traceability and control
Lifecycle battery status monitoring
