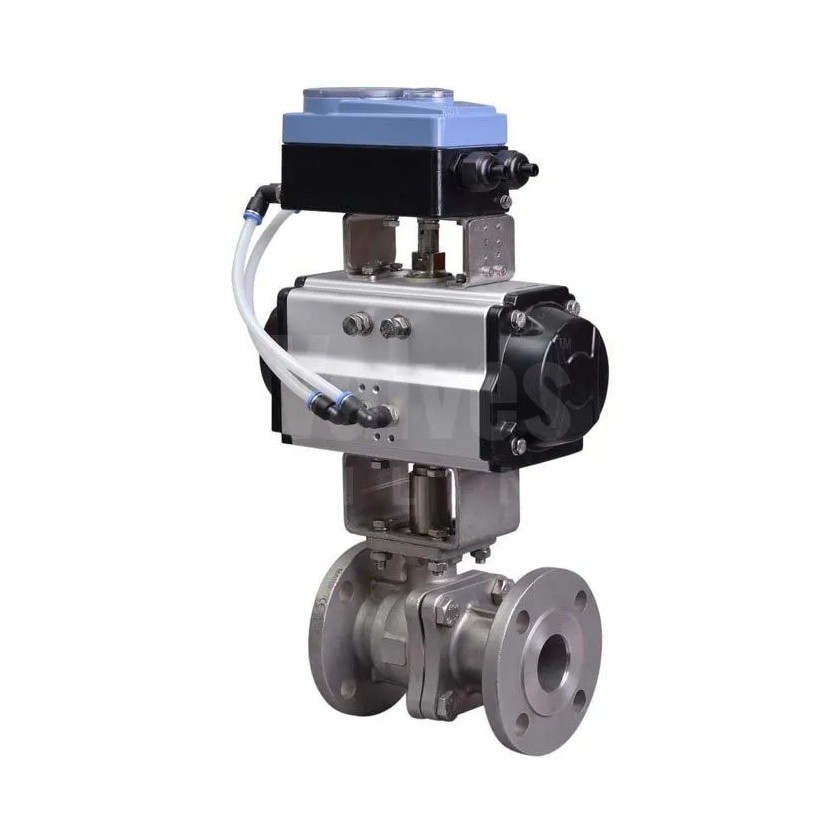

Our Pneumatic V Sector Ball Control Valve is precision-engineered and fully tailored to deliver ultra-accurate throttling regulation for virtually every industrial process flow application, ranging from light commercial fluid handling to heavy-duty chemical, petrochemical, food & beverage, HVAC, and energy processing systems. This complete control assembly seamlessly integrates three core high-grade components: a high-performance segmented V-notch modulating ball valve body built for stable proportional flow adjustment, a heavy-duty, leak-tight reliable pneumatic actuator with long service life under cyclic operation, and an intelligent advanced electro-pneumatic positioner that eliminates lag and delivers instantaneous valve stroke correction for tight process control.
Manufactured to global pressure rating standards, the valve comes standard in PN16 metric flanged and ANSI Class 150 imperial flanged connection configurations, with a comprehensive size lineup spanning compact 1/2-inch up to robust 6-inch nominal bore variants. This broad dimensional and pressure range makes it perfectly suited to withstand the variable pressure, temperature and media conditions found in all mainstream commercial and industrial process environments, including batch manufacturing plants, continuous production lines, thermal energy facilities, water treatment stations, and pharmaceutical processing workshops.
Engineered with a balanced flow characteristic and rigid sealing architecture, the unit excels at sustaining highly consistent, repeatable flow rates during both non-stop continuous production cycles and intermittent batch operation workflows. It demonstrates exceptional regulatory performance in two critical common industrial scenarios: precise stabilization of operating pressures within automated liquid filling production lines, and accurate modulation of discharge temperatures on heat exchanger circuits by fine-tuning the steam supply feed lines that govern thermal exchange efficiency. Unlike conventional globe valves that suffer from high pressure drop or standard full-port ball valves lacking proportional throttling capability, the V-sector design delivers linear, predictable flow curves with minimal turbulence and erosion on internal valve trim.
Installation, commissioning and on-site programming are simplified drastically thanks to the built-in self-auto tune intelligent positioner. The auto-calibration function automatically detects valve stroke range, eliminates mechanical dead zones, and optimizes response speed without manual complex parameter adjustment. The positioner supports dual universal analog input signal protocols, compatible with industry-standard 4–20mA current loop signals and 0–10V DC voltage input signals, enabling seamless direct integration with distributed control systems (DCS), PLC control panels, and standalone process transmitters from all major automation brands.
To match unique flow coefficient, pressure differential and media viscosity demands across diverse working conditions, the valve trim is fully customizable with three distinct V-notch ball profile options: 30°, 60°, and 90° segmented V-sector balls. Each cut angle delivers a unique inherent flow characteristic—30° V-notches deliver fine low-flow throttling for micro-dosing applications, 60° variants strike a balanced linear flow curve for general-purpose regulation, while 90° full-sector balls accommodate high-volume flow throughput for large-bore piping systems. This flexible trim selection delivers unmatched operational versatility, allowing engineers to configure the exact valve performance needed to satisfy specialized liquid, gas, vapor, and even low-viscosity slurry flow control requirements without costly redesign or component replacement.
Beyond its core regulating functionality, the valve assembly includes additional optional upgrades to further expand application adaptability: soft metal or PTFE sealing packages for zero-leak shutoff service, high-temperature trim alloys for superheated steam media, anti-corrosion internal lining for acidic or alkaline chemical fluids, limit switch feedback modules for remote valve position monitoring, and air filter regulator units to stabilize instrument air supply to the pneumatic actuator. Combined with low maintenance wear parts and a corrosion-resistant cast valve body construction, this pneumatic V sector ball control valve stands as a durable, all-in-one proportional flow control solution that balances precision, ease of operation, and long-term operational cost efficiency for industrial process engineers worldwide. China manufacturer offers high-quality industrial products with competitive pricing and advanced production capabilities.
