For applications in compressed gases, air and other non-corrosive situations, such as air compressor, vacuum pump, oil pressure system , air pressure system..etc.
Manufacture by the EN837-1 standard
Manufacture by the EN837-1 standard
Functional and constructive characteristics
Model: PG14
Dial size: 40,50 and 75mm
Accuracy class per EN 837-1: ± 1.6% F.S
Scale range: From -76cmHg~1000kg/cm² or equivalent other units of pressure or vacuum
Working pressure: max 75% of the full scale value
Over pressure limit: max 20% of the scale value
Ambient temperature: -25~+65℃
Process temperature: -25...+120℃
Case & Ring: Chromate treatment
Window: PC
Dial: Aluminium, white with dual color black and red markings
Pointer: black anodized aluminium
Socket material: brass
Element : phosphor bronze
Movement: brass
Welding: silver alloy
Protection: IP44
Dial size: 40,50 and 75mm
Accuracy class per EN 837-1: ± 1.6% F.S
Scale range: From -76cmHg~1000kg/cm² or equivalent other units of pressure or vacuum
Working pressure: max 75% of the full scale value
Over pressure limit: max 20% of the scale value
Ambient temperature: -25~+65℃
Process temperature: -25...+120℃
Case & Ring: Chromate treatment
Window: PC
Dial: Aluminium, white with dual color black and red markings
Pointer: black anodized aluminium
Socket material: brass
Element : phosphor bronze
Movement: brass
Welding: silver alloy
Protection: IP44

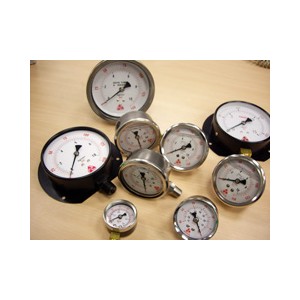

SESCO series-Pressure Gauges
|
|
OP : Ordinary pressure gauge |
|
OG : Liquid-Filled pressure gauge |
|
|
SG : All stainless |
