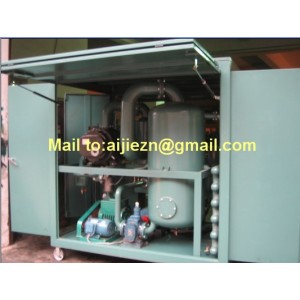

High Efficiency Transformer Oil Purifier

ZYD double stage vacuum transformer oil purifiers are designed for use in treating electrical insulating oil in the oil-filled electrical equipment.As the oil purifying nanotechnology, this machine can treat oil more quickly and more completely, and makes the oil limiting voltage-withstand value much higher than the ordinary vacuum oil purifier.

It also can be used for filtration of more than 110V substation live line work onsite. Meanwhile, Series ZYD oil purifier can be used as independent vacuum source with functions of vacuum drying and vacuum oiling.

Features:

1.Double-Stage vacuum system,strong power of vacuum evacuating,ultimate vacuum value no more than 5Pa

2.Two vacuum separating chambers,efficient of film sprayer,increasing separating size and separating time to ensure the dry-level and dielectric strength improving greatly.

3.Duplex-Stereo film evaporation technology,combined with unique and advanced dewatering,degassing components,can rapidly and effectively separate water, gas,from oil.

4.Multi-stage precision filtration system,mesh filtration combined with molecular adsorption technologies.

5.Efficient electric heating system,heating uniformity,less power consumption,safe and reliable.

6.Double-infrared liquid level sensor,pressure,protective system to ensure machine operation easy and safely.

7.Adopt interlocked protective system,which connect oil pump,heater and liquid level sensor,avoiding blank heating,blank pumping.

Advantage:
Comparing with the single-stage type, this machine adopts the double stages vacuum system, which can improve the machines working vacuum value highly, so it can dewater, degas and remove the impurity more deeply and effectively. The dielectric value of treated oil is higher than 75 KV. It is very suitable for the large electric & insulation equipments.
