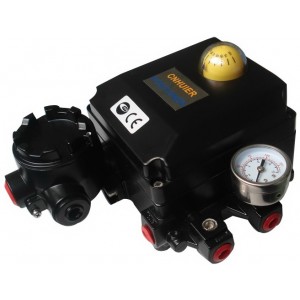

HIC1000Series
Features
-Pass CE authentication
-Pass explosion proof (ExiaⅡ CT6, ExdⅡ BT6, ExdⅡ CT6) authentication
-Pass IP66 authentication
-High anti-vibration (none effective in 5-200Hz)
-The link link
-Convenient for the transform of positive action and counteraction
-1/2 split range available by simple adjustments without changing parts
-Easy maintenance
-Simple structure for feedback connection Δ Rotary
-Economical energy saving
SPECIFICATION
Input signal: 4~20mADC
Impedance: 250±15
Air supply: 1.4~7kgf/cm2,20~100psi）
Stroke：10~150mm ,0~90°
Air connection: PT(NPT)1/4
Gauge connection: PT(NPT)1/8
Conduit: PF1/2(G1/2)
Explosion proof: ExdIIBT6,ExdIICT6,ExiaCT6
Protection: IP66
Ambient temperature：-20°C~70°C
Linearity: ±1%F.S. ,±2%F.S.
Hysteresis :±1%F.S.
Sensitivity:±0.2%F.S,±0.5%F.S.
Repeatability: ±0.5%
Air consumption:3LPM(Sup=1.4kgf/cm2,20psi)
Flow capacity:80LPM(Sup=1.4kgf/cm2,20psi)
Material: Aluminum alloy
Weight: 2.7kg(6Ib)2.8kg(6.2Ib)
