Refrigeration Air Dryer



Unit Price NegotiableCompare
Inquiries None
Views 261
Shipping MalaysiaSelangorSubang Jaya
Expiry Valid indefinitely
Updated 2011-10-18 08:48


You have not logged in yet, please log in to view contact information


Detailed Description
When choosing a right refrigerated air dryer, five important factors must be concerned:
The actual flow required
The operating pressure
The Inlet compressed air temperature
The ambient air temperature
The pressure dew point required
Filterall Filtration able to offer you the refrigeration dryer based on the five important factors above, and help you to solve the compressed air contamination problem.
MODEL Max. Capacity (Nm3/min) Pipe Connection Power Source (50Hz) Refrigerant
FRD-08G 0.8 1/2"PT 240V/1ph R134a
FRD-10GP 1.2 3/4"PT
FRD-15GP 2.2 1"PT
FRD-25GP 3.6 1"PT
FRD-40GP 5.5 1-1/2"PT R407c
FRD-60GP 8.1 1-1/2"PT
FRD-75GP 10.6 2"PT 415V/3ph
FRD-100GP 15 2"PT
FRD-125N 18 3"FL
FRD-150N 22 3"FL
FRD-175N 27 3"FL
FRD-200N 30 3"FL
FRD-250N 36 4"FL
ReportFavorite 0Comment 0
More>Other products from this company

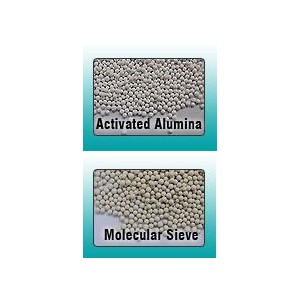

Dessicant - Activated Alumina / Molecular Sieve Condensate Drain Compressed  Air Filter Housing Heatless Vacuum Purge Desiccant Dryer Customized Filtration Compressed Air Replacement Filter Elements
