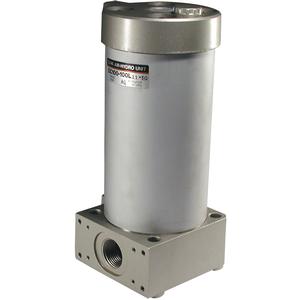

Converting pneumatic pressure to hydraulic pressure (equivalent pressure)
solves cylinder problems occurring due to the compression characteristics of
pneumatic pressure.
• Constant-speed operation is possible with load fluctuations.
• Solves the problems of sticking and slipping associated with low-speed operation.
• Intermediate stopping and skip movement possible.
• Suitable for slow operation of a rotary actuator.

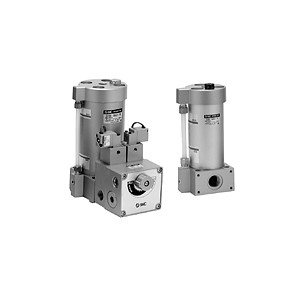

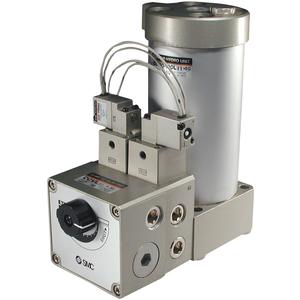

Integrate a converter and a valve unit in a compact configuration.
• Possible to select 4 types of valve units for applications.
• Possible to connect a converter and a valve unit independently.
Wide range of series in terms of converter capacity and valve unit flow rate
control capability.
• Compatible with cylinder bore sizes up to ø300.
• Operation at a piston speed of 180 mm/sec with a size ø80 cylinder bore.
(Operating pressure: 0.5 MPa, Load mass: No load, Piping: I.D. ø19 mm x length 1 m)
