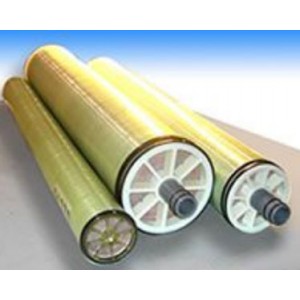

FILMTEC SW30-4040

membrane | ro membrane | dow ro membrane | dow ro membrane malaysia | filmtec ro membrane | DOW FILMTEC SW30-4040

Product Description :

Detailed Product Description

1) Sea Water Reverse Osmosis Membrane
2) Size: 4" x 40" inches
3) Flow / GPD : 1950
4) Stabilized Salt Rejection (%): 99.4

 The Dow FILMTEC SW30-4040 Sea Water Membrane is specifically designed for applications where the higher TDS (Total Dissolved Solids) of marine water is addressed by the a thin film composite which sustains the higher pressures typically utilized in sea water reverse osmosis applications while maintaining a 99.4 percent stabilized salt rejection.

• Up to 1950 Gallon Per Day production
• Up to 1000 SIPG
• Fits Standard 4" Housings or Pressure Vessels
• Highest flow rates available to meet the water demands of both sea-based and land-based desalinators
• May also be operated at lower pressure to reduce pump size, cost and operating expenses
• Improved FILMTEC seawater membrane combined with automated, precision element fabrication result in the most consistent product performance available.

 Improved FILMTEC SW30-4040 seawater reverse osmosis elements offer the highest productivity while maintaining excellent salt rejection.

• FILMTEC SW30-4040 membrane elements have the highest flow rates available to meet the water demands of both sea-based and land-based desalinators.
• FILMTEC SW30-4040 elements may also be operated at lower pressure to reduce pump size, cost, and operating expenses.
• Improved FILMTEC seawater membranes combined with automated, precision element fabrication result in the most consistent product performance available

 1. Permeate flow and salt rejection based on the following test conditions: 32,000 ppm NaCl, 800 psig (55 bar), 77°F (25°C), and 8% recovery.
2. Permeate flow rates for individual elements may vary +/-20%.
3. For the purpose of improvement, specifications may be updated periodically.
