Maximum range C H H1 M
2kg ~ 5kg (aluminum sensor) 10 6.5 5 Diameter 2.2 (ball head face)
5kg ~ 80kg (steel sensor) 10 6.5 5 Diameter 2.2 (ball head face) Parameter Unit Value (Data)
Range kg 0.5,1,2,3,5,10,20,30,40,50,60,80,100
Output Sensitivity mV / V 0.5 ± 0.3
Comprehensive error % F.S 0.5/0.2
Linear hysteresis % F.S 0.2
Zero temperature drift % F.S/10F 0.1
Sensitivity temperature drift % FS/10F 0.6 (Al) / 0.2 (steel)
Zero mV / V ± 0.1
Overload % F.S 150

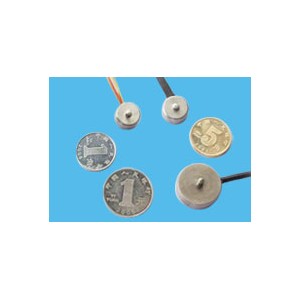

Recommended excitation voltage (Recommend excitation) 0.5-10V, the maximum excitation voltage (Maximum excitation) 18V. Ultra ultra-small sensors, space-saving, for a variety of limited space and to save space use. According to the user's specific requirements and customize the sensor dimensions. Cable diameter of 3 mm, length 1 m, length can be adjusted according to the customer.
Range kg 0.5,1,2,3,5,10,20,30,40,50,60,80,100
Output Sensitivity mV / V 0.5 ± 0.3
Comprehensive error % F.S 0.5/0.2
Linear hysteresis % F.S 0.2
Zero temperature drift % F.S/10F 0.1
Sensitivity temperature drift % FS/10F 0.6 (Al) / 0.2 (steel)
Zero mV / V ± 0.1
Overload % F.S 150
Recommended excitation voltage (Recommend excitation) 0.5-10V, the maximum excitation voltage (Maximum excitation) 18V. Ultra ultra-small sensors, space-saving, for a variety of limited space and to save space use. According to the user's specific requirements and customize the sensor dimensions. Cable diameter of 3 mm, length 1 m, length can be adjusted according to the customer.
