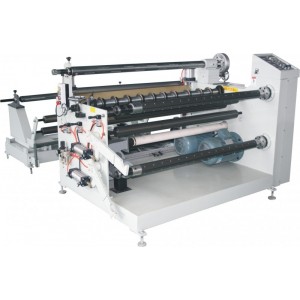

DP-1300/1600 multifunction laminating and slitting machine
Funcional characteristics:
This machine is sticking and slitting equipment of high precision and high sensitivity, with inflatable bearing is used for feeding and receiving materials.
with fully automatic hydraulic rectification control. Automatic detection, rectification and metering can be realized.
It is characterized by accurate slitting, fast slitting speed, ease of operation and maintenance, etc.
Purpose:
It is applicable for the laminating and slitting tooling of industrial adhesive tape, cellophane tape, protective film,
copper foil, aluminum foil, OPP, PE, PVC, sheet, cloth, etc.
This mahcine is widely used in the industries such as printing, packing, electronics, leather, clothes making, plastic, etc.
| Model | 1300 multifunction laminating and slitting machine | 1600 multifunction laminating and slitting machine | 650 multifunction slitting laminating machine |
| Max Feeding Width ( mm ) | 1300 | 1600 | 650 |
| Main Engineer Power ( KW ) | 6 | 6 | 2.2 |
| Speed (T/M ) | 80 | 80 | 80 |
| Size ( mm ) | 2400*2000*1300 | 2400*2300*1300 | 2400*1700*1300 |
| Weight (kg) | 1200 | 1500 | 1000 |
| Feeding diameter ( mm ) | 600 | 800 | 600 |
| Rewinding diameter ( mm ) | 450 | 450 | 450 |
| precision ( mm ) | ±0.10 | ±0.10 | ±0.10 |
| Power | 380V 50HZ | 380V 50HZ | 200V 50Hz |
