Company

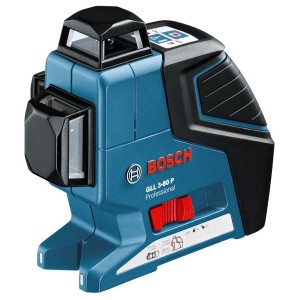

GLL 3-80
Part no. 0 601 063 300
- Batteries 4 x 1,5 V (AA)
- Magnet target plate
- Protective pouch
Technical data
| Laser diode | 640 nm, < 1 mW |
| Laser class | 2 |
| Working range | 40 m |
| Working range with receiver | 80 m |
| Working range with target plate | 20 m |
| Levelling accuracy | 0,2 mm/m |
| Self-levelling range | ± 4° |
| Dust and splash protection | IP 54 |
| Power supply | 4 x 1,5-V-LR6 (AA) |
| Operating duration, max. | 23 h |
| Tripod connection | 1/4", 5/8" |
| Weight | 0,76 kg |
| Length | 159 mm |
| Width | 75 mm |
| Height | 141 mm |
GLL 2
|
|||||||||||||||||||
Technical data
|
