lightning protection

Unit Price	NegotiableCompare
Inquiries	None
Views	95
Delivery	Asia
Brand	LEIK
型号	LK-RJ45-8H
规格	ethernet LAN surge arrester
Expiry	2013-03-27 Expired
Update	2012-03-27 16:15
	This Supply has expired

You are not logged in, please log in to view contact information

Detailed Description

LEIK series network signal electric surge protective devices based on IEC and ITU-t standard design of lightning, multistage protection circuits, imported high speed protective devices, Low capacitance designs, fast response, output remnant low pressure and transmit superior performance. Interface with standard RJ45 shielded Crystal head for the ETHERNET10/100 network device (like SWTICH, HUB, ROUTER) over voltage protection, high voltage pulse on the curb line, protecting the back-end devices from lightning, industrial surge damage.

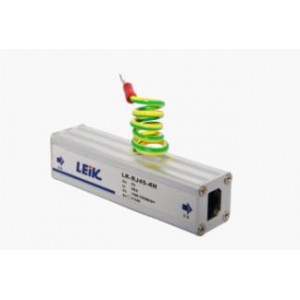

This product is a good selection of metal shell, seal, dust-proof corrosion-proof features, in-line connection, installation between the protected equipment and an outside line.

Product model			Type	LK-RJ45-4H	LK-RJ45-8H
Rated working voltage			U_n	5V	5V
Max. continuous operating voltage			U_c	5.8V	5.8V
Nominal discharge current (8/20μs)		line/line	I_n	350A	350A
Nominal discharge current (8/20μs)		line/ground		5KA	5KA
Max. discharge current(8/20μs)			I_max	10KA
Voltage protection level(In)	line/line			≤30V	≤30V
Voltage protection level(In)	line/ground			≤500V	≤500V
transfer(3dB)			fg	～ 100MHz	～ 100MHz
interface				RJ45
Protection line				1,2,3,6 1-8
Shell material				Aluminum alloy
Insertion loss			lL	≤0.5dB	≤0.5dB
Series resistance			R	2.2Ω	2.2Ω
