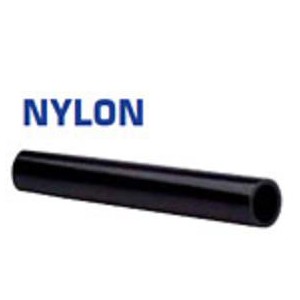

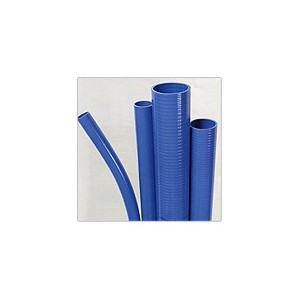

Nylon pressure tubing is made from premium quality raw materials and precision engineered to ensure simplicity of connections with fittings and adaptors.
|
| Flexible Metric |
| Nominal O.D. (mm) |
Nominal Wall Thickness (mm) |
Working Pressure (PSI) |
| 4 |
0.65 |
290 |
| 5 |
0.85 |
290 |
| 6 |
1.0 |
290 |
| 8 |
1.4 |
290 |
| 10 |
1.7 |
290 |
| 12 |
2.0 |
290 |
|
| |
| Flexible Imperial |
| Nominal O.D. (inch) |
Nominal Wall Thickness (inch) |
Working Pressure (PSI) |
| 1/8" |
0.019" |
250 |
| 3/16" |
0.013" |
250 |
| 1/4" |
0.040" |
250 |
| 5/16" |
0.049" |
250 |
| 3/8" |
0.058" |
250 |
| 1/2" |
0.076" |
250 |
| 5/8" |
0.065" |
125 |
| 3/4" |
0.080" |
125 |
|
| |
| Semi-Rigid Imperial |
| Nominal O.D. (inch) |
Nominal Wall Thickness (inch) |
Working Pressure (PSI) |
| 1/4" |
0.050" |
650 |
| 3/8" |
0.074" |
650 |
| 1/2" |
0.097" |
650 |
|
 Self-Store |
| Nominal O.D. (mm) |
Nominal Wall Thickness (mm) |
Working Pressure (PSI) |
| 6 |
0.8 |
174 |
| 10 |
1.1 |
174 |
| 12.5 |
1.6 |
174 |
|
Please download the catalogue here.
