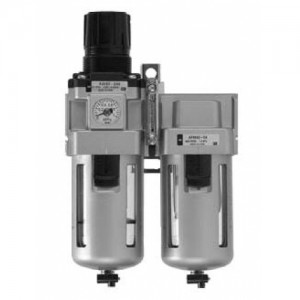

Air combination Filter Regulator + Mist Separator AC20D to AC40D
Modular Type F.R.L. Unit - AC
| Combination equipment | Series/CAD | Port size | Set pressure (MPa) |
| Air filter, Regulator, Lubricator |
AF+AR+AL |
M5 x 0.8 1/8,1/4,3/8, 1/2,3/4,1 |
0.05 to 0.85 (M5: 0.05 to 0.7) |
| Filter regulator, Lubricator |
AW+AL | M5 x 0.8 1/8,1/4,3/8, 1/2,3/4,1 |
0.05 to 0.85 (M5: 0.05 to 0.7) |
| Air filter, Regulator | AF+AR | M5 x 0.8 1/8,1/4,3/8, 1/2,3/4,1 |
0.05 to 0.85 (M5: 0.05 to 0.7) |
| Air filter, Mist separator, Regulator |
AF+AFM+AR | 1/8,1/4,3/8, 1/2,3/4 |
0.05 to 0.85 |
| Filter regulator, Mist separator |
AW+AFM | 1/8,1/4,3/8, 1/2,3/4 |
0.05 to 0.85 |
