Model: 3.7P-9.5V5A (Horizontal Pressure-switch Type)
Features
- High Cooling Head - High Cooling Head with large aluminium alloy ventilated rib improves heat radiaton and air capacity. In addition, V-groove located between discharge and suction chamber reduces the heat transfer from discharge chamber to suction chamber and improves air capacity.
- Lead Air Valve - Lead Valve of I-shaped-stainless-steel-suction-air valve improves air capacity and improves durability against rusting.
- Heat Cut Piston Pin & Leak Cut Piston Ring - Heat Cut Piston Pin of heat-insulating material reduces heat transfer from the piston to the needle bearing and keeps bearing in relatively low temperature and improves the reliability. Leak Cut Piston Ring of specially shaped abutment joint reduces air leakage and improves air capacity.
- Bebicon Oil - Bebicon Oil is high performance oil and specially developed for Bebicon compressors. Please make sure to use Bebicon Oil to save power, to prevent performance degradation and to prevent accident.
Specifications
| Tank Type | Horizontal |
| Operating System | Pressure-switch type |
| Maximum Pressure (MPa) | 0.93 |
| Cylinder Diameter x Stroke x Number of Cylinders |
L)90mm x 85mm x 1 H)50mm x 85mm x 1 |
| Compressor Speed (min-1) | 1000 |
| Displacement (Liters/min) | 541 |
| Capacity at Maximum Pressure (Liters) | 440 |
| Air Tank Capacity | 125 |
| Power Source | Three Phase |
| External Dimensions (W x D x H)mm | 1477 x 429 x 890 |
| Weight (kg) | 158 |
| Noise Level (dB)[A] | 74 |
Standard Accessories
- Pressure Gauge
- Safety Valve
- Hose Joint
- V-Belt
- Belt Cover
- Silencer
- Stop Valve
- 1/4B Air Outlet x 1
- 3/8B Air Outlet x 1

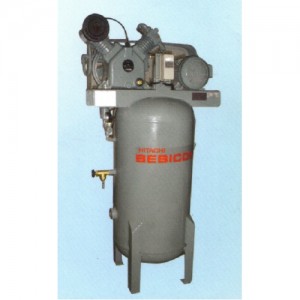

Hitachi Vertical Bebicon Air Compressor
