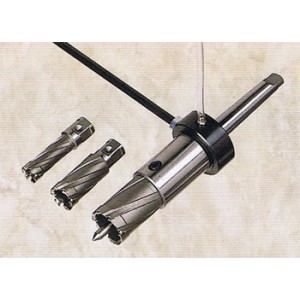

| Features |
- Can be used with drills, lathes and magnetic drills for drilling steel plate, structured steel, stainless steell plate, cast iron, carbon material and steel pipes of maximum 50mm in thickness. Available for both SM and SN material.
- Used in various industries such as bridge construction, canning, shipbuilding, and plant constructions.
|
| Specifications |
- Cutter diameter : 17.5 to 35mm
- drilling depth : 50mm
- Tip width : 3.9mm
- Cutter shank : 19.05ø weldon shank (quick coupling)
- MT Adapter : MT-2 and MT-3
- Applicable machines : Upright drill, radial drill, magnetic drill, lathe, milling machine, machining center, etc.
|
| Size Table |
|
Cutter Code : CRSQ
Cutter
Diameter
(mm) |
|
Cutter
Diameter
(mm) |
|
Cutter
Diameter
(mm) |
|
| 17.5 |
|
27 |
|
45 |
|
| 18 |
|
28 |
|
46 |
|
| 18.5 |
|
29 |
|
47 |
|
| 19 |
|
30 |
|
48 |
|
| 19.5 |
|
31 |
|
49 |
|
| 20 |
|
32 |
|
50 |
|
| 20.5 |
|
33 |
|
51 |
|
| 21 |
|
34 |
|
52 |
|
| 21.5 |
|
35 |
|
53 |
|
| 22 |
|
36 |
|
54 |
|
| 22.5 |
|
37 |
|
55 |
|
| 23 |
|
38 |
|
58 |
|
| 23.5 |
|
39 |
|
60 |
|
| 24 |
|
40 |
|
61 |
|
| 24.5 |
|
41 |
|
62 |
|
| 25 |
|
42 |
|
63 |
|
| 26 |
|
43 |
|
65 |
|
| 26.5 |
|
44 |
|
|
|
MT Adapter (with center pin)
| Code |
Specification |
|
| CRSMT2S |
MT-2 |
|
| CRSMT3S |
MT-3 |
|
Pilot pin
|
