Prime Power
|
546KW/682KVA
|
Standby Power
|
600KW/750KVA
|
|
Rated Speed
|
1800RPM
|
Frequency
|
60Hz
|
|
Phase
|
3 Phase 4 Wires
|
Rated Voltage
|
400/230V
|
|
Engine Model
|
KTAA19-G6A
|
Alternator Model
|
HCI 544FS
|
|
Steady Voltage Deviation
|
≤±1%
|
Transient Voltage Adjustment· Recovery Time (Sudden deducting / Increasing load)
|
≤+20% ·4s / -15%·4s
|
|
Steady Frequency Drop
|
≤2%
|
Transient Frequency Adjustment · Recovery Time (Sudden deducting / Increasing load)
|
≤+10% ·3s / -7%·3s
|
|
Dimension Open Type
|
3650X1550x2000
|
Gross Weight
|
5200
|
|

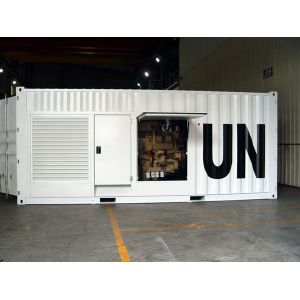

Dimension Silent Type
|
6100X2438x2600
|
Gross Weight
|
8395
|
Cummins 750KVA Diesel generator set, Genset, Power generator
Genset model: ETCG750
Standby Power: 600KW/750KVA;
Frequency:50HZ/ 60HZ
Voltage: 380/220V
Engine: KTAA19-G6A
Alternator: Stamford/ HCI544FS Optional(Etone, Leorysomer, Marathon)
Generator set specified parameters
Cummins Diesel Generator Set is a set of complete equipment for electrical power supply. Cummins engines, high quality alternators and advanced full automatically control system are produced through strict test, which together provides reliable power no matter as standby, prime or continuous use.
Technical Specification for Standard Gen Set:
Gen-set adopt 3 phases& 4 lines output, with output 400V/230V, Frequency 50Hz/60Hz, Power factor 0.8, Neutral point to earth and protective performance complies with NEMA1 and IP22 standard.
Parameter:
Power Factor: 0.8(lagging)
Protection Standard: IP21-IP23
Model of Connection: 3 phase 4 lines
Insulation Grade: H
Frequency Drop(%): ≤ 0.5
Transient state frequency deviation(%): (advertised power) +10~-7
Frequency Recovery Time(S): ≤ 3
Voltage Recovery Time(S): ≤ 4
Waveform Distortion(%): ≤ 5
Features:
High fuel efficiency: Fewer fuel consumption at leading level than other competitive products.
The turbocharger with waste gated design: Optimizes operation across the torque curve resulting in excellent low-end torque.
Compacted yet durable and dependable engine: Cummins engines contain up to 40% fewer parts than competitive engines in its class. This results in a better power-to-weight ration, a less chance of failure and lower repair cost.
Advanced design and manufacturing: Make the engine delivers superior performance and lower cost than competitive engines.
Excellent cold start performance: Optional assistant cold starter with improved 6.6KW starter and intake air heater.
Excellent performance and advantage: Adopt advanced design to achieve higher horsepower and lower weight.
