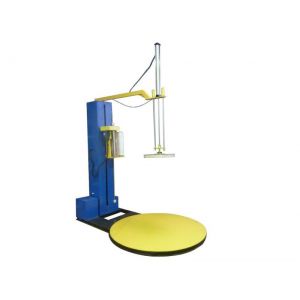

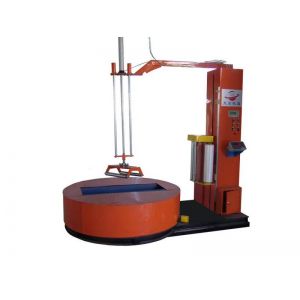

TP1650F-CS 380V
1.Machine introduction
Fit motorised top plate based on T1650F. This machine is widely suitable for tall and unstable good, top plate provides a press to the top of load and ensure it safety packing. This machine is widely suitable for tall unstable good, top plate provides a press to the top of load and ensure it safety packing
2.Technicial parameter
|
Wrapping size（L*W） |
（500~1200）×（500~1100）mm |
|
Packing Height |
Made according to requirement |
|
Turntable diameter |
1650mm |
|
Turntable Height |
85 mm |
|
Turntable weight capacity |
2000kg |
|
Turntable speed |
0-12rpm |
|
Top pressure |
20 kg |
|
Electrics |
380V 50HZ |
|
Power |
1.5kw |
|
Machine dimensions (mm) |
2745(L)×1650(W)×3300(H) |
|
Packing efficiency |
20-40 loads/hour base on load |
|
Top Plate Device |
Adopt Pneumatic Direct Transmit Orbit Top Plate |
|
Penumatic Systerm Pressure(mpa) |
0.6-1.0 |
|
Penumatic Systerm Consumption |
1000ml/min |
|
Machine weight |
800kg |
3、Material usage:
Machine is using a standard type of stretch film packaging material for creating a hard to tear,resistance,waterproof cover over the baggage.The film is recyclable.Specification:width:500mm,thickness:20-25 microns,length:1500meters,weight: max:16kg,stretchable,one side sticky,transparent or colored.
4.Function of the machine:
1.Control System
PLC control
Photo-eye auto-height sensing pallet height
Separate top ,bottom & up-down Wrap Counter options
Overwrap time is up to create an overwrap
Reinforce wrap times is set to better secure 2 loads placed on top of each other
Film Tension Control adjustment on the panel
Separate start, pause and emergency stop buttons
Power indicator
Manual carriage up/down
Variable Turntable Speed
Carriage up/down speed control
Manual/automatic exchangeable
2.Turntable
1650mm Diameter Structural steel plate
85mm Height floor to top of turntable
3.Turntable drive
0-12rpm variable turntable speed by frequency changer
Position turntable alignment
Soft start
4.Film carriage
Powered pre-stretch system up to 250% to min film consumption
Film delivery variable speed by separate DC Drive Motor
Electronic film tension control adjustment on panel
Film dancer-bar with variable speed output
5.Film carriage Drive
Heavy duty double-chain carriage lift, calm and safety
Film carriage variable speed by frequency changer
