Master Chain Clamp

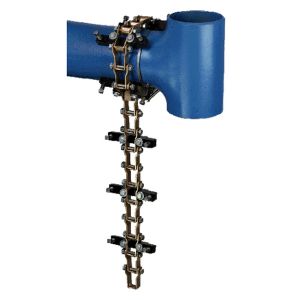

H & M introduces its new Master Chain Clamp, a versatile clamping system designed to increase productivity. One person can quickly and safely perform perfect fit-ups of flanges, tees and elbows in minutes. Each Master Chain Clamp works 4″ – to 16″-(114 mm to 406 mm)
diameter pipe/fittings. Additional chain and jackbars can be added for larger pipe sizes. The clamp weighes 28 lbs. when fully assembled, but can be streamlined when working smaller-sized pipe. Set-up, positioning and alignment for welding is now faster, easier and more precise.
Components
Chain Link s
- 23
link s work 4″ – to 16″ – (114 mm to 406 mm) diameter pipe/fittings - 7/16-14 bolts connect each
link Link s can be quickly added or removed
Jackbars
- System includes eight
- Constructed of cast ductile iron
- Each fitted with two jacking screws
- Re-forms pipe up to /375″ wall thickness
Latching Handle
- Includes a 3/4″ Acme thread bolt and nut
- Secures clamp quickly and efficiently to pipe
Support Mechanism
- Fully adjustable
- Supports large fittings
- Quickly allows squaring a leveling
