INFRARED THERMOMETER

INFRARED THERMOMETER

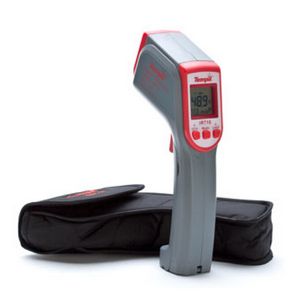

The Tempil IRT-16 Infrared Thermometer is the industry’s most advanced, non-contact, infrared technology-based surface temperature measurement device. The lightweight and compact Tempil IRT-16 is easy to use and engineered to provide superior accuracy and consistency in surface temperature measurement for a wide range of non-conventional surface temperature measurement applications. The Tempil IRT-16 Infrared Thermometer will accurately measure temperatures in a range from -76°F to 1157°F, and its easily adjustable emissivity, combined with laser targeting and a 16:1 distance to spot ratio, allows for greater precision over a variety of applications.  IRT-16 can be easily converted to a contact measurement device by using K-Type thermocouple (available on request).

• High-temperature range
• 16:1 distance to spot ratio
• Ergonomic hand grip
• Heavy-duty nylon holster case
• Four-digit backlit dual display
• °C or °F selectable readout
• Electronic trigger lock for continuous measurement
• Adjustable emissivity
• Laser sight switchable
• Min/Max/Avg and differential temperature modes
• Low-battery indication and auto power off
• Built-in jack for K-Type thermocouple probe to allow direct contact measurement
• High accuracy  dependent on surface condition, angle of target with respect to the IRT-16, and the distance to the target
• NIST Certification is available

The Tempil IRT-16 infrared gun housing is molded of high-impact material to stand up to the everyday riggers of the job site. The IRT-16 is ergonomically designed for ease-of-use, its backlit digital display is easy to read in virtually any light condition, and it comes with a heavy-duty nylon holster for easy carrying and protection.

Applications:

• Stationary surfaces, such as welding and metal fabrication
• Metal processing applications, such as preheating, annealing or stress relief
• Hot metal forming operations, such as roll stands or forging
• Non-stationary surfaces associated with conveyors or processing lines
• Hot and/or dangerous liquid and associated handling system components
• Contaminated surfaces or hazardous materials
• Electrical equipment, high-voltage components and other electric utility applications
• Difficult to reach internal machine components, bearing housings, motors and other plant maintenance applications
• Hard to reach HVAC surfaces, such as elevated components and other energy management applications
• Automotive diagnostics for commercial and racing applications
