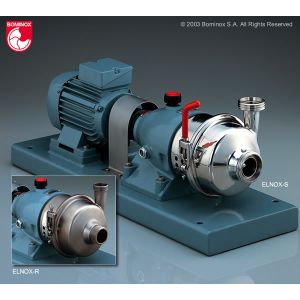

ELNOX-R/S - Free shaft centrifugal pump (threaded)
| Flow rate |
Q = 1 to 150 m3/h |
| Total head |
H = 5 to 100 mwc |
| Motors |
P = 0.5 to 30 hp
(0.37 to 22 kW) |
| Temperature |
T = 100ºC
(special seal 150ºC) |
| Material |
AISI-316L |
| Aplications |
Water, beer, wine, alcohol, juices, syrups and whey etc.
Acids, salts and solvents etc. |
|

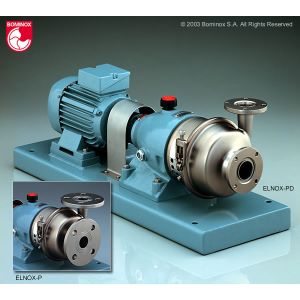

ELNOX-P/PD - Free shaft centrifugal pump (with flanges)
Patented:
Utility Model No 286465 |
| Flow rate |
Q = 1 to 150 m3/h |
| Total head |
H = 5 to 100 mwc |
| Motors |
P = 0.5 to 30 hp
(0.37 to 22 kW) |
| Temperature |
T = 100ºC
(special seal 150ºC) |
| Material |
AISI-316L |
| Aplications |
Water, beer, wine, alcohol, juices, syrups and whey etc.
Acids, salts and solvents etc. |
|
