Side channel, self-suction pumps


Unit Price NegotiableCompare
Inquiries None
Views 97
Delivery MalaysiaSelangorShah Alam
Brand BOMINOX
Expiry Long-term valid
Update 2014-06-15 12:07

Contact Information
Follow0

SIMECH ENGINEERING SDN BHD

VIP   CompanyYear 9
InformationNot Verified
DepositNot Paid
Enter Homepage More Products
Detailed Description

f1_gran

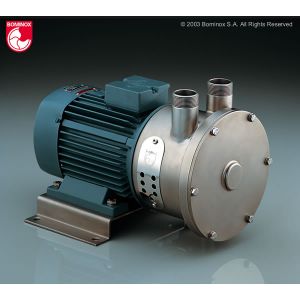

RAPIT-MM - Side channel, monobloc self-suction pump

Flow rate Q = 1 to 40 m3/h
Total head H = 5 to 60 mwc
Motors P = 1 to 20 hp
(0.75 to 15 kW)
Temperature T = 100ºC
(special seal 130ºC)
Material
Aplications Water, wine, alcohol, must, juices and brine etc.
Acids, salts and solvents etc.



f2_gran

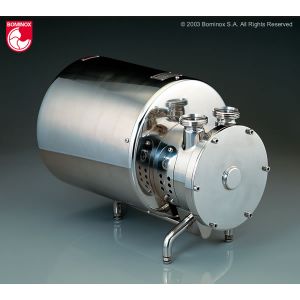

RAPIT-SS - Side channel, sanitary self-suction pump

Flow rate Q = 1 to 40 m3/h
Total head H = 5 to 60 mwc
Motors P = 1 to 20 hp
(0.75 to 15 kW)
Temperature T = 100ºC
(special seal 130ºC)
Material AISI-316L
Aplications Water, wine, alcohol, must, juices and brine etc.



f3_gran

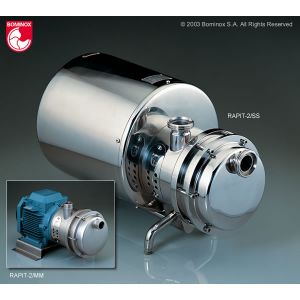

RAPIT-2 - Twin-stage, side channel, self-suction pump

Flow rate Q = 1 to 40 m3/h
Total head H = 5 to 100 mwc
Motors P = 1.5 to 30 hp
(1.1 to 22 kW)
Temperature T = 100ºC
(special seal 130ºC)
Material AISI-316L
Aplications Water, wine, alcohol, must, juices and brine etc.
Acids, salts and solvents etc.
