Flexible impeller self-suction pumps

You have not logged in yet, please log in to view contact information

Detailed Description

g1_gran

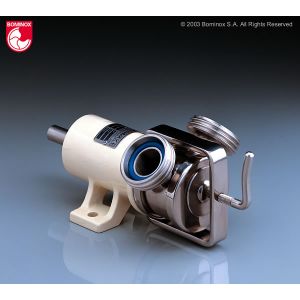

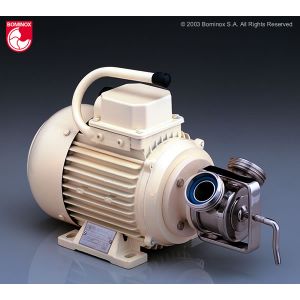

FLEXO-M - Flexible impeller monobloc self-suction pump

Flow rate	Q = 1 to 20 m3/h
Total head	H = 5 to 20 mwc
Motors	P = 0.33 to 2 hp (0.25 to 1.5 kW)
Motor velocity	n = 750-1000-1500 rpm
Maximum viscosity	V = 5000 cP
Temperature	T = 70ºC
Material	AISI-316
Aplications	Water, brine, oil, wine, milk, juices, syrups and honey etc.

g2_gran

Flow rate	Q = 1 to 20 m3/h
Total head	H = 5 to 20 mwc
Motors	P = 0.33 to 2 hp (0.25 to 1.5 kW)
Motor velocity	n = 750-1000-1500 rpm
Maximum viscosity	V = 5000 cP
Temperature	T = 70ºC
Material	AISI-316
Aplications	Water, brine, oil, wine, milk, juices, syrups and honey etc.
