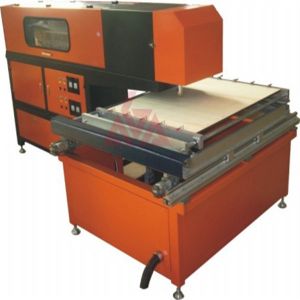

Product introduction:
AGA1212/400W/600W are used in packaging printing industry, Adhesive Sticker industry, Electronics industry, Plastic Stationery industry and so on. main cutting Die-board.
- Using CO2 glass laser 400W; 600W, Working stable, good laser beam model;
- Designing fixed-optical to ensure the laser facula kept the same,high cutting precision;
- High quality optical device, cooling system by chiller,protect the lens effectively;
- Cast iron structure of machine tools,laser tube is separate from machine tools,working without shake;
- Single head design, debugging iseasy,high cutting precision;
- Special control software for laser cutting;
- Working without waitting, without pre-heating, without auxiliary gas,low power,environmental protection and energy saving,less investment, good repayment,high cost performance.
Machine parameter:
|
Type of machine |
AGA1212 |
|
|
Laser power |
400W |
600W |
|
Type of Laser |
CO2 direct-current stimulated glass laser |
|
|
Wave length |
10.6um |
|
|
Size |
1250×1250mm |
|
|
Precision |
±0.03mm |
|
|
Power supply |
220V±5% 50Hz |
|
|
Power of total |
6.5KW-10KW |
|
|
Weight |
1.4T |
|
|
Measure |
3900×3000×1600mm |
|
