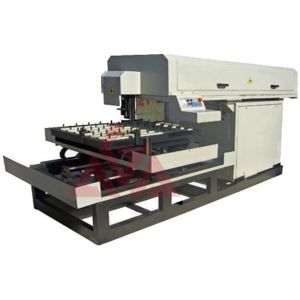

Product introduction:
Product Features:
Import ed 200W; 280W DC-type CO2 glass laser tube;- No need pre-heat, no startup costs, can be worked while start, low energy consumption;
- High quality precision screw rail transmission system;
Import ing Japanese Mitsubishi / Panasonic servo drive system;- Contact-type automatic focus system;
- Special beam processing technology make the laser beam keep consistency during processing;
- Reasonable structure design make the machine with high rigidity characteristics;
- Up and down stand-alone type smoking exhaust system, making the effect of the device pumping smoking get unexpected results;
- The protective structure of transmission components and optical components, play an effective role for protecting the screw, rail, optical components and laser components, to ensure that the equipment long-term stable and reliable operation.
- Strict and scientific assembly process control to ensure precision and performance of the machine;
- Offline control unit.
Product technical parameters:
|
Model |
AGA1212 |
|
|
Laser output power |
200W |
280W |
|
X-axis travel-length |
1250mm |
|
|
Y-axis travel-length |
1250mm |
|
|
Positioning Precision |
0.05mm |
|
|
Max. speed of positioning |
10m/min |
|
|
Controlling system |
Movement control card/NC |
|
|
Transmission system |
Guide screw system |
|
|
Driving system |
3 axial |
|
|
Optical system |
fixed -optical |
|
|
Moving structure |
Gantry |
|
|
Chiller system |
Special Chiller system for |
|
|
Overall dimensions |
2080mm×3190mm×1300mm |
|
|
Weight |
1.5T |
|
|
Structure |
Open |
|
|
Power supply |
380V/50HZ/30A |
|
