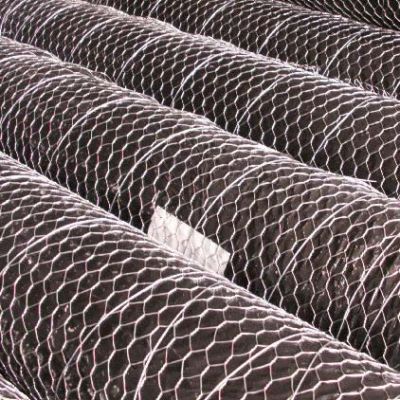

Hexagonal Wire Mesh is also named chicken wire, chicken mesh, chicken wire mesh, chicken netting and poultry mesh.
Common Size
| Mesh |
Wire diameter |
Width |
Length |
Weaving pattern |
|
|
Gauge(BWG) |
MM |
||||
|
3/8” |
BWG 27-23 |
0.41-0.61mm |
0.1-1.2m |
10-200m |
Only straight twist |
|
5/8” |
BWG 27-22 |
0.41-0.71mm |
0.1-1.2m |
10-200m |
|
|
1/2” |
BWG 25-22 |
0.51-0.71mm |
0.1-2.0m |
10-200m |
|
|
3/4” |
BWG 26-20 |
0.46-0.91mm |
0.1-2.0m |
10-200m |
|
|
1" |
BWG 26-18 |
0.46-1.22mm |
0.5-2.0m |
10-200m |
straight twist & double-direction twist. |
|
1 1/4" |
BWG 24-18 |
0.56-1.22mm |
0.5-2.0m |
10-200m |
Only double-direction twist. |
|
1 1/2" |
BWG 24-17 |
0.56-1.42mm |
0.5-2.0m |
10-200m |
|
|
2" |
BWG 22-14 |
0.71-2.03mm |
0.5-2.0m |
10-200m |
|
|
3" |
BWG 22-14 |
0.71-2.03mm |
0.5-2.0m |
10-200m |
|
|
4” |
BWG 17-14 |
1.42-2.03mm |
0.5-2.0m |
10-200m |
|
Surface Treatmeat: weaving after electrical galvanized, weaving after hot-dip galvanized, weaving before hot-dip galvanized (3” and 4” can not be do as weaving before hot-dip galvanized)
Uses: Used for feeding chicken, ducks, gooses, rabbits and the fence of zoo, machinery equipments protection, speedway's fencing, stadium' purse net, the evanescence belt protection mesh on the road and the high galvanized hexagonal wire mesh is also used for keeping fish in the sea.
Packing:Packed with water proof paper or shrink wrapped,normally use 20' container to load.
