metal gabion

Unit Price	¥21.00 / RollCompare
Inquiries	None
Views	21
Delivery	AsiaChinaPre-sale, Within 30 days after payment
Stock	1000RollMin order 100Roll
Brand	Aining
Material	hot dip galvanized wire, PVC coated wire
Features	Economic,Simple installation
Packing	For easy handing and shipping,the gabions are supplied folded flat
Expiry	2014-11-06 Expired
Update	2013-11-06 16:50
	This Supply has expired

You are not logged in, please log in to view contact information

Detailed Description

Metal Gabion is divided into cells with diaphragms (usually spaced at 1 meter or 3’ intervals), whose function is to reinforce the structure. The mesh (except for the diaphragms) is reinforced on all edges with wires of a larger diameter to strengthen the gabions and facilitate the assembly and installation.

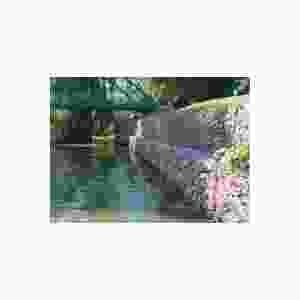

Metal Gabion consists of rectangular units, fabricated from a double-twisted hexagonal mesh. Filled with stones, gabions become large, flexible and permeable elements from which a broad range of structures may be built. Gabions and mattresses are widely used for hydraulic and geo- technical control such as retaining walls, riverbank protections, weirs, channel linings etc.

Metal Gabion Surface treatment:

1. Electro galv. Gabion box

2.Common Hot-dipped galv. Gabion box, Zinc coated about 50g/m2

3.Heavy Hot-dipped galv. Gabion box, Zinc coating complies to ASTM-A641-1998 & EN 10244-2

4.PVC coated gabion box complies to ASTM A975 & EN 10245-2

Metal Gabion wire and aperture:

Metal Gabion
Opening (mm)	Wire diameter (metal wire) (mm)	Wire diameter (pvc coated) /inner / outside (mm)	strands
60X80	2.0-2.8	2.0/3.0-2.5/3.5	3
80X100	2.0-3.2	2.0/3.0-2.8/3.8	3
100X120	2.0-3.4	2.0/3.0-2.8/3.8	3
120X150	2.0-4.0	2.0/3.0-3.0/4.0	3
TOLERANCES: Opening shall not exceed ±10% on the nominal dimension

Packing: For easy handling and shipping, the gabions are supplied folded flat. A color stripe applied on the side of each folded gabion identifies the size.
Loading: Usually, gabions will be loaded into 40ft containers to save cost.
