Specifications
Pacrel® TPO FR 6000
Material: Thermoplastic Polyolefin
Hardness: Shore80A-50D

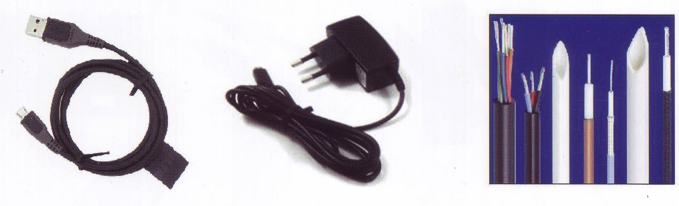

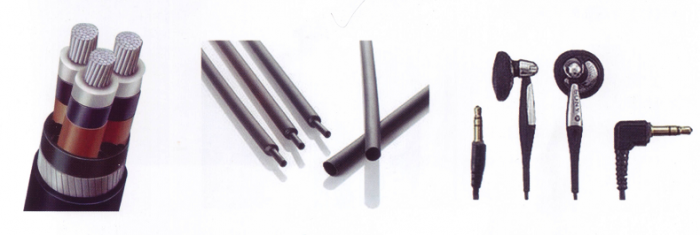

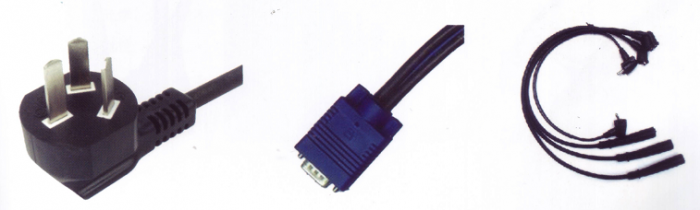

Application area: Auto parts, wire and cable, electronics,etc
Advantages:
-Low smoke halogen free flame retardant
-Excellent UV and ozone resistance
-Excellent ageing resistance
-Excellent flex-resistance
-Good adhesion to paints
-Can be recycled, environmentally friendly material
|
Test Item |
Unit |
Test Method |
FR6080N |
FR6085N |
FR6090N |
FR6095N |
|
|
Physical Property |
Hardness |
Shore A/D |
ASTM D2240 |
80A |
85A |
90A |
50D |
|
Density |
g/cm3 |
ASTM D792 |
1.20 |
1.22 |
1.23 |
1.23 |
|
|
100% of the stretching strength |
Mpa |
ASTM D412 |
4 |
7.6 |
8 |
11.2 |
|
|
Tensile strength |
Mpa |
ASTM D412 |
7.8 |
8.6 |
11 |
15.6 |
|
|
Elongation at break |
% |
ASTM D412 |
550 |
550 |
621 |
680 |
|
|
Compression set |
% |
ASTM D395 |
45 |
45 |
- |
- |
|
