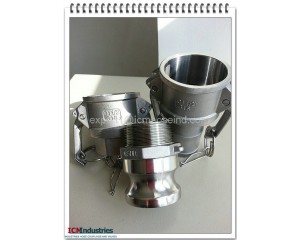

2. Stainless steel camlock fittings also used with salt water, water waste and many chemicals & can also be used with hydraulic oil and coolants.
3. Features:Excellent corrosive resistance;high temperature ability;Long life expectancy;
Wide working temperature.
Working pressure: no more than 250 psi;
Temperature range: -150°F to +500°F (-101°C to +260°C);
4. Material: stainless steel 316, stainless steel 304
Sizes: 1/2" to 8"
Spce: A B C D E F DC DP FC FA
Thread: NPT, BSPP, BSPT
Camlock coupling: Gravity casting/Die casting
Pins, Rings and Safety clip material: Carbon steel plated or stainless steel
Handle material: Brass or stainless steel
Seal: NBR, BUNA, EPDM, VITON
Standard: A-A-59326 (previously called MIL-C-27487) or DIN 2828.
We aslo sell hose couplings ( Camlock, Sotrz, Bauer Guillenmin couplings ), stainless pipe fittings, valves, flanges, sanitary fittings and valves and so on.
