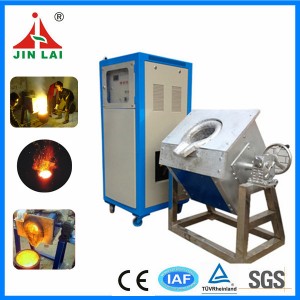

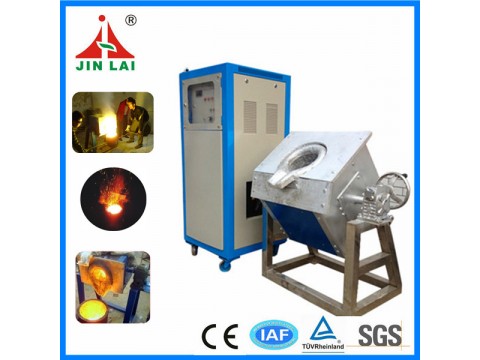

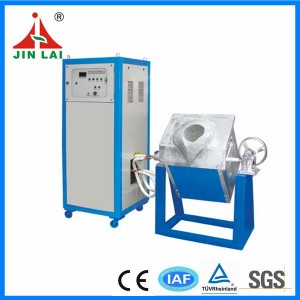

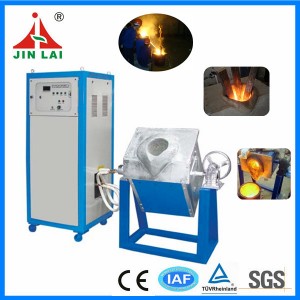

1.Main parts of the melting furnace system
1. M.F Induction Heating Power.
2. Tilting type Melting Furnace.
2. Characteristics of M.F Melting Furnace
- Better Heating penetration and even temperature inside the melting metal.
- M.F field force can stir the melting pool to achieve better melting quality.
- Melting the Maximum quantity by the recommend machine according to above table the melting time is 50-60 minutes, the first melting when the furnace is cold ,and it will take about 20-30 minutes for the later melting when the furnace is already hot.
- Suitable for melting of steel, iron, cooper, bronze, gold, silver and aluminum, stannum, magnesium, stainless steel.
|
Model |
JLZ-45KW |
JLZ-70KW |
JLZ-90KW |
JLZ-110KW |
JLZ-160KW |
|
Input power desire |
3 phase 380V 50/60HZ |
3 phase 380V 50/60HZ |
3 phase 380V 50/60HZ |
3 phase 380V 50/60HZ |
3 phase 380V 50/60HZ |
|
Oscillate power max |
45KW |
70KW |
90KW |
110KW |
160KW |
|
Max input current |
70A |
105A |
135A |
175A |
240A |
|
Oscillate frequency |
1-20KHZ |
1-20KHZ |
1-20KHZ |
1-20KHZ |
0.5-10KHZ |
|
Cooling water desire |
>0.3MPa 4L/Min |
>0.5MPa 6L/Min |
>0.5MPa 6L/Min |
>0.5MPa 6L/Min |
>0.5MPa 6L/Min |
|
Duty cycle |
100% 40°C |
100% 40°C |
100% 40°C |
100% 40°C |
100% 40°C |
|
Dimensions(L*W*G) |
630*600*1500mm |
630*600*1500mm |
630*600*1500mm |
650*600*1520mm |
670*620*1600mm |
|
Net weight |
120kg |
130kg |
140kg |
150kg |
160kg |
|
Cable length |
2-6(Meters) |
2-6(Meters) |
2-6(Meters) |
2-6(Meters) |
2-6(Meters) |
Melting ability of each model (heating speed: first cool furnace 50-60mins, second heated furnace 20-30mins)
|
Steel ,iron |
Copper, Gold , Silver |
Aluminium |
|
|
JLZ-15 15KWMelting Furnace |
|
10KG |
3KG |
|
JLZ -25 25KW Melting Furnace |
5KG |
20KG |
6KG |
|
JLZ -35 35KW Melting Furnace |
10KG |
30KG |
10KG |
|
JLZ -45 45KW Melting Furnace |
18KG |
50KG |
20KG |
|
JLZ -70 70KW Melting Furnace |
25KG |
100KG |
30KG |
|
JLZ -90 90KW Melting Furnace |
40KG |
120KG |
40KG |
|
JLZ -110 110KW Melting Furnace |
50KG |
150KG |
50KG |
|
JLZ -160 160KW Melting Furnace |
100KG |
250KG |
100KG |

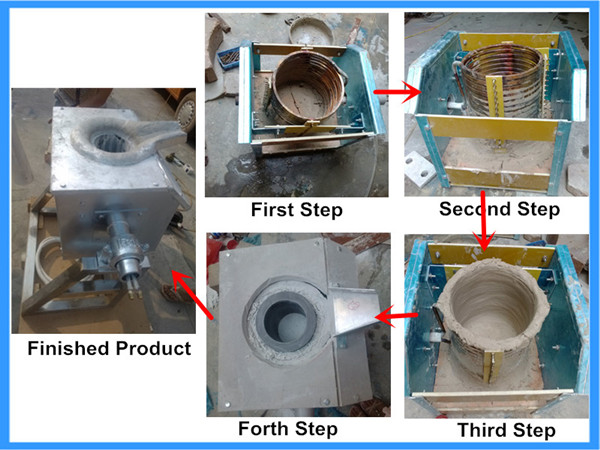

Making steps

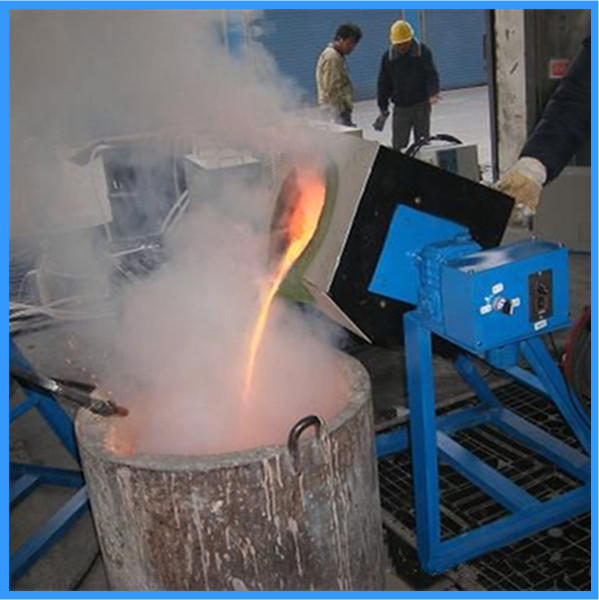

Working Photo For Reference
