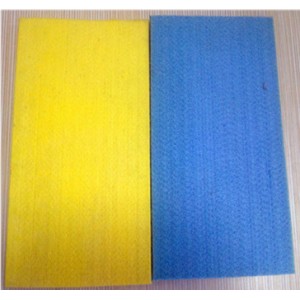

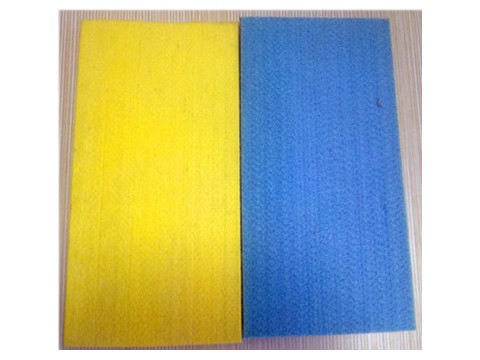

Needle Corrugator Belt

 Needle Corrugator Belt producted by professional needle machine with advanced technic,According the requirement of corrugated paper board production line,The corrugator belt made of high grade PET fiber & NOMEX fiber to meet the high temperature and high stength.and each belts must be heat-setting and chemical treatment to guarantees the stabily size.



Features:

High temperature resistance

Aging resisant,Surface even, Stabilizing size

long life time



Specifications:

             Normal Needle Corrugator Belt         Heat-resistance Needle Corrugator Belt

Material:               PET100%                              PET100%

Applt speed:           100-300m/min.                          100-300m/min.

Thickness:               9.3mm                                 9.3mm

Wideth:               1400 -2380 mm                           1400 -2380 mm

Tension:                 63Mpa                                63Mpa

Heat-resistance:           200 ℃                                              230℃

Weft:                  0.8%/180℃                            0.8%/180℃

Warp:                 0.42%/180℃                                    0.42%/180℃

Coefficient of friction:       0.40μ                                  0.38μ

Weight per unit:           5.5 kg/m2                              5.5 kg/m2

Min. winding radius:       R75mm                                R75mm

Air-permeability:          4.7 M3/M2                                                5M3/M2

Life:                     14000h                               14000h





Price: FOB 80-100USD/m2



Port::Xingang



Date of delivery:15-30days



Tel: 86-311-80772027

E-mail: troy.l@huataogroup.com

Skype: huataobelt@outlook.com

Website:www.htwirebelt.com

Add: No.298,North Zhonghua Street, Shijiazhuang,Hebei,China

Huatao Wire Belt Factory
