Cloudray motor provides a range of 2-phase stepper motors and stepper motor driver with frame sizes from NEMA 17,NEMA 23,NEMA 24, NEMA 34. Cloudray stepper motor and Stepping Motor Driver are widely used in engraving machine, cutting plotter, textile machine, 3D printer, medical devices,stage lighting equipment, robot, CNC machine, music fountain and other industrial automatic equipment.
High Torque, High Precision and Long life is Cloudray's core advantages
Stepper Motor characteristic:
Low vibration,Low heating, No loss of step
Fast Response,Better Acceleration Performance
Higher Resolution，Avoidance of Resonance Regions
Sturdy structure, extremely long life
High quality materials including bearings and shaft made in Japan
Short length and light weight allow them to be used in highly integrated systems
ISO 9001, CE, RoHS international quality certification, reliable products.
Stepper motor for cnc machine, cnc motor
Whatsapp: +8615380187704
Email: motor@cloudray.com
Website: https://www.cloudraymotor.com
Cloudray motor provides a range of 2-phase stepper motors and stepper motor driver with frame sizes from NEMA 17,NEMA 23,NEMA 24, NEMA 34. Cloudray stepper motor and Stepping Motor Driver are widely used in engraving machine, cutting plotter, textile machine, 3D printer, medical devices,stage lighting equipment, robot, CNC machine, music fountain and other industrial automatic equipment.
High Torque, High Precision and Long life is Cloudray's core advantages
Stepper Motor characteristic:
Low vibration,Low heating, No loss of step
Fast Response,Better Acceleration Performance
Higher Resolution，Avoidance of Resonance Regions
Sturdy structure, extremely long life
High quality materials including bearings and shaft made in Japan
Short length and light weight allow them to be used in highly integrated systems
ISO 9001, CE, RoHS international quality certification, reliable products.
Nema 17 Stepper Motor?characteristic:
Low vibration,Low heating, No loss of step
Fast Response,Better Acceleration Performance
Higher Resolution，Avoidance of Resonance Regions
Sturdy structure, extremely long life
High quality materials including bearings and shaft made in Japan
Short length and light weight allow them to be used in highly integrated systems
ISO 9001, CE, RoHS international quality certification, reliable products.

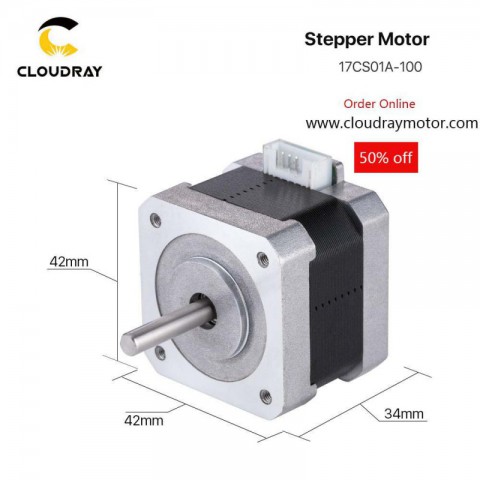

Nema 17 Stepper Motor?specification:
Model: 17CS01A-100E
Phase Number: 2
Step Angle(0): 1.8°±5%
Holding Torque (N.m): 0.15N.m
Rated Current(A): 1.0A
Phase Inductance(mH): 1.89mH± 20%
Phase Resistance(ohm): 1.28ohm± 10%
Number of Lead: 4
Rotor Inertia(g.cm2）： 41g.cm2
Shaft Diameter(mm): 5mm
Motor Weight(kg): 0.3kg
Motor Body Length L(mm): 34mm
