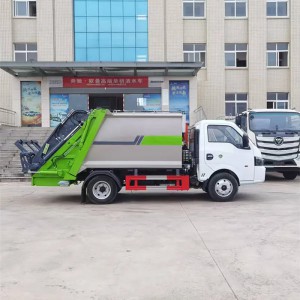

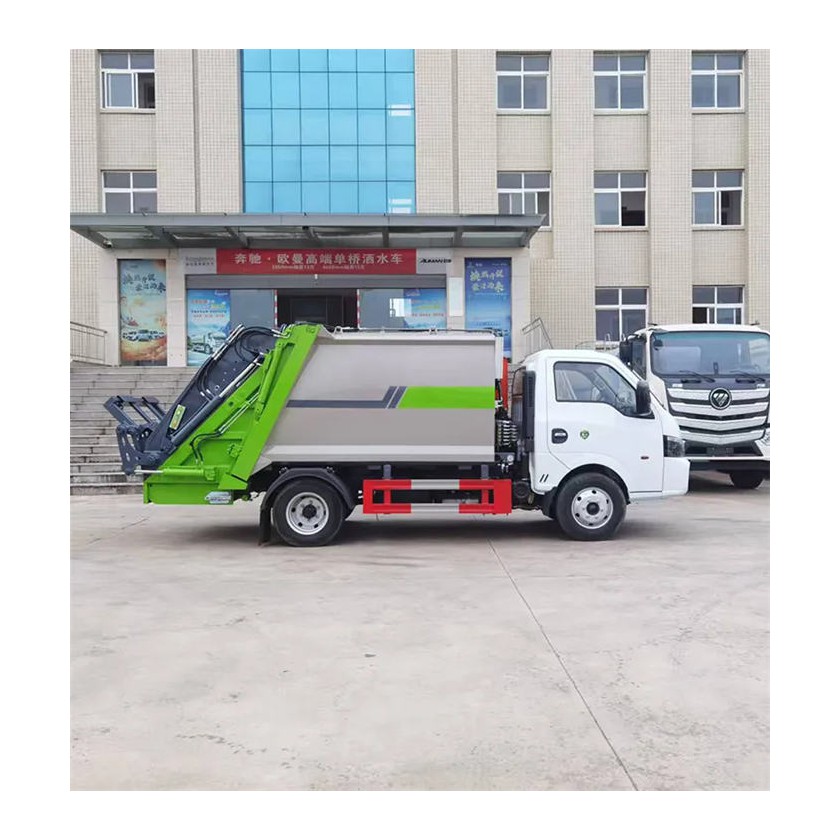

This garbage compactor truck is made of Dongfeng chassis and garbage body, filler, shovel, loading mechanism, hydraulic system, electric control system and other components.
It adopts afterloading bidirectional compression technology, hydraulic and electrical core components to select high-quality components with high working efficiency, high working stability, simple and beautiful appearance.
The control mode and operation mode are humanized, and it is a reliable and simple garbage collection and transfer vehicle.
2.Functional profile
It has many functions such as garbage collection, automatic garbage loading and compaction, garbage transfer and dumping.
3.Range of application
Dongfeng 5.8CBM Garbage Compactor Truck is mainly used for the collection and transfer of barreled, bagged and bulk domestic waste in urban residential areas, communities, large factories and mines, institutions and colleges, and narrow streets in the old city.
Item | unit | Parameter | |
Overall dimension | Length, | mm | 5800 |
width | mm | 2000 | |
height | mm | 2300 | |
Wheelbase | mm | 2700,2950 | |
Rated load mass: | kg | 3550 | |
Quality of service | kg | 1500 | |
Gross mass | Kg | 5000 | |
Chassis model, category, manufacturer | / | Dongfeng Chassis | |
Number of passengers | seat | 2 | |
Engine model, production enterprise | / | Anhui Quanchai power Co., LTDQ23-95E60 | |
Engine rating | KW | 70kw | |
Maximum design speed | km/h | 95 | |
Maximum gradient | / | ≧30% | |
Approach Angle | o | 27.7 | |
Departure Angle | o | 19 | |
Effective volume of garbage body | m³ | 5.8 | |
Filler hopper volume | m³ | 0.8 | |
Left sewage tank volume | L | — | |
Right sewage tank volume | L | 170 | |
Filler sewage tank capacity | L | 170 | |
Total volume of sewage tank | L | 340 | |
Working speed | r/min | 1400 | |
