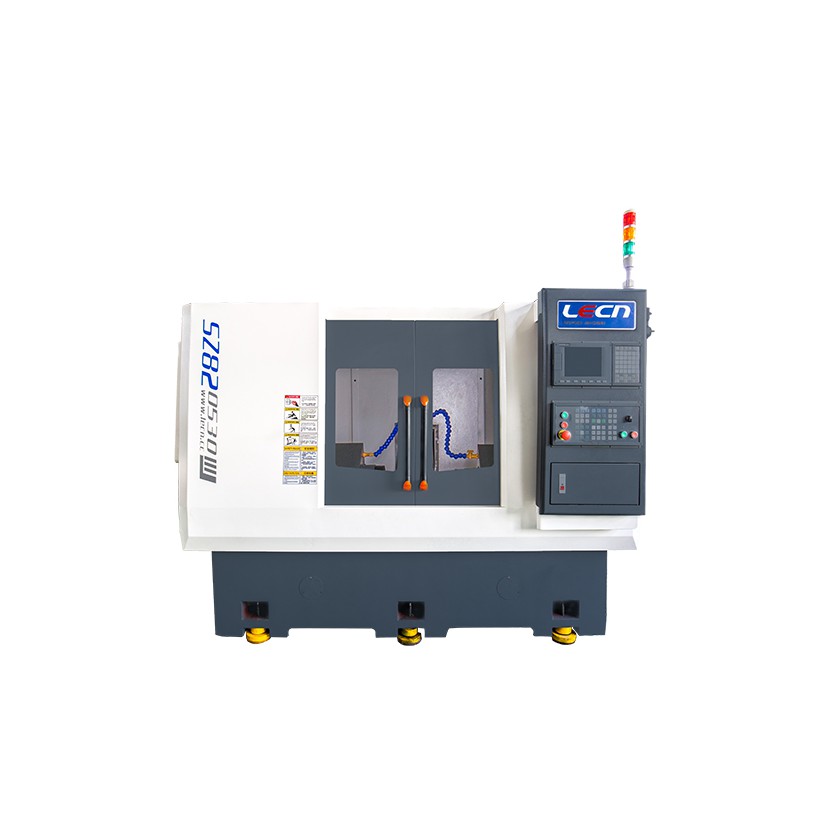

Slanting Facing and Centering Machine SZ820530/SZ820550
Product Description
Both ends of the one clamping are processed at the same time, the slanting facing and centering machine with 100-500 mm workpiece length is suitable for milling, chariot, drilling center hole, drilling, tapping, boring, reaming, grooving package of all kinds of slender, irregular and stepped parts. High coaxiality, high efficiency, chip easily, it can carry with truss or joint robot and automatical line.
Technical Parameters
ITEM | SZ820530 | SZ820550 |
Clamping Diameter Scope, mm | Ø15-Ø50 | Ø15-Ø50 |
Workpiece Length Scope, mm | 100-300 | 200-500 |
Max Center Drilling Clamping Diameter, mm | Ø20 | Ø20 |
Max Milling Amount(One Side), mm | 4 | 4 |
