Detail Information

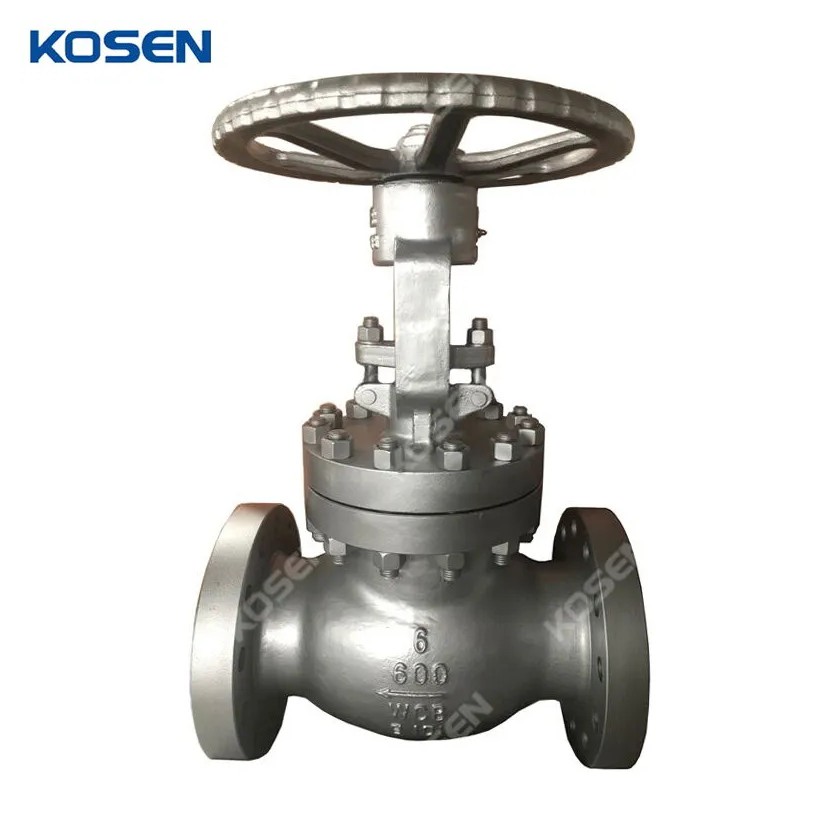

Product Name: Carbon Steel Globe Valve
Design Standard: BS 1873
Body Material: Carbon Steel ASTM A216 WCB
Size: 6 Inch, DN150
Pressure: Class 600 LB, PN100
End Connection: RF Flanged
Operation: Manual
Medium: Water, Oil, Gas, etc
Temperature Range: -29°C to 595°C
The Cast Steel Globe Valves are engineered to maintain a VOC (volatile organic compounds) leakage rate of under 100 ppm. Through comprehensive baseline laboratory testing, which includes both static and cycle tests, we've determined the essential design parameters for achieving low-emission sealing in the stem packing and bonnet gasket areas. To ensure consistency, we've established an in-house testing procedure that's regularly carried out. This guarantees that our valves meet the 100 ppm VOC leakage standard before they leave our facility.
Technical Specification
» Nominal Diameter: NPS 1/2–24 Inch (DN15–DN600)
» Design Pressure: Class 150–2500 LB (PN10–PN420)
» Materials: ASTM A216 WCB, WCC, A217 WC6, WC9, C5, C12A, A352 LCB, LCC, A351 CF8, CF8M, CF3M, CF8C, CN3MN, CK3MCUN, CN7M, A890 4A (CD3MN), 5A (CE3MN), 6A (CD3MWCuN), B148 C95800, C95500
» End Connections: Flanged (FF, RF, RTJ) and BW to international standards
» Operation: Handwheel, bevel gear, electric, pneumatic
» Applications: Electric power, petroleum refining, petrochemical engineering, offshore oil, urban water engineering, chemical engineering
» Design and Manufacture: ASME B16.34, BS 1873, DIN 3356
» Face to Face (End to End): ANSI B16.10, EN 558 series
» Flanged Connection: ANSI B16.5, EN 1092 series
» Butt Welded End: ANSI B16.25
» Test and Inspection: API 598, ISO 5208, EN 12266-1
» Temperature Range: -29°C to 595°C
» Medium: Water, gas, oil, and other fluids
