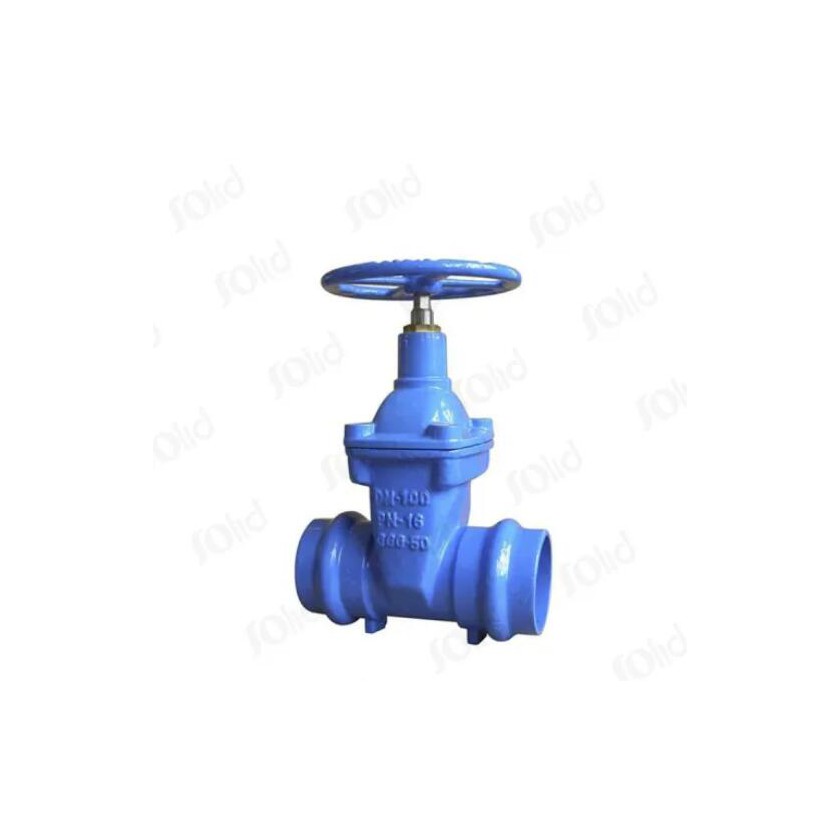

A Socket-End Resilient Seated Gate Valve is a type of valve designed with a socket end connection and a resilient seat, typically made from materials such as ductile iron or cast iron. The socket end allows for easy installation and a secure fit with the pipe, while the resilient seat provides excellent sealing and durability. This type of valve is commonly used in water supply and industrial systems to regulate flow. Shanxi Solid Industrial Co., Ltd. is a manufacturer specializing in socket end gate valves, can design and manufacture the big sized gate valve according to DIN 3352-F4, DIN 3352-F5, BS5163, AWWA C509, AWWA C515.
Categories: Ductile iron Gate Valve, Cast iron Gate Valve
Standard: DIN 3352-F4, DIN 3352-F5, BS5163, AWWA C509, AWWA C515
Working pressure: 10bar/16bar/25bar
Testing pressure:
Shell: 15bar/24bar/37.5bar
Seal: 11bar/17.6bar/27.5bar
Material:
Body: Ductile iron GGG40/50 or Cast IronGG25
Wedge: Ductile iron GGG40/50+EPDM/NBR or metal seated
Stem: Stainless steel 2Cr13, SS304,SS316
Bolt and Nuts: Carbon Steel with zinc plated or SS304,316
Coating: Internal and external with fusion bonded epoxy coating min250μm
Applicable medium: water, sewage, waste water
Applicable temperature: -10℃~+80℃
