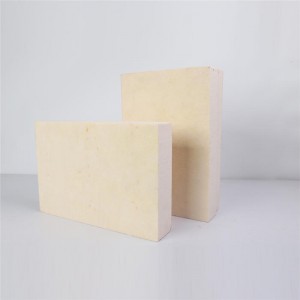

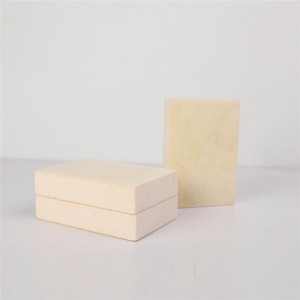

Our SQ PF Board represents the pinnacle of high-performance thermal insulation technology, combining exceptional fire resistance with outstanding thermal efficiency. As one of the most advanced phenolic foam insulation solutions on the market, it delivers unparalleled protection against heat transfer while meeting stringent fire safety regulations.
Industry-Leading Technical Specifications
Parameter | Value |
Thickness | 20-250mm |
Standard Width | 600/900/1000/1200mm |
Length | Customizable |
Foam Density | 40-100kg/m³ |
Thermal Conductivity | 0.02W/m•K |
Water Absorption | 0.25% by volume |
Compressive Strength | ?50psi |
Tensile Strength | ?25psi |
Dimension Change | 0.1% |
Key Performance Advantages
Ultra-Low Thermal Conductivity (0.020-0.022 W/mK) - Provides up to 2x better insulation than conventional materials
Fire-Resistant Composition - Meets semi-combustible/non-combustible standards with minimal toxic gas emission
Moisture-Resistant Structure - Closed-cell design prevents water absorption (0.25% by volume)
Eco-Friendly Manufacturing - Freon-free production with minimal carbon footprint
Dimensional Stability - Maintains shape under temperature fluctuations (0.1% change)
For more information about phenolic insulation board or to obtain samples, please contact Shengquan sales team. We provide professional technical consultation and customized solutions.
