Nanocrystalline-Ferrite Composite Toroidal Core
Features:
Composite Structure?:

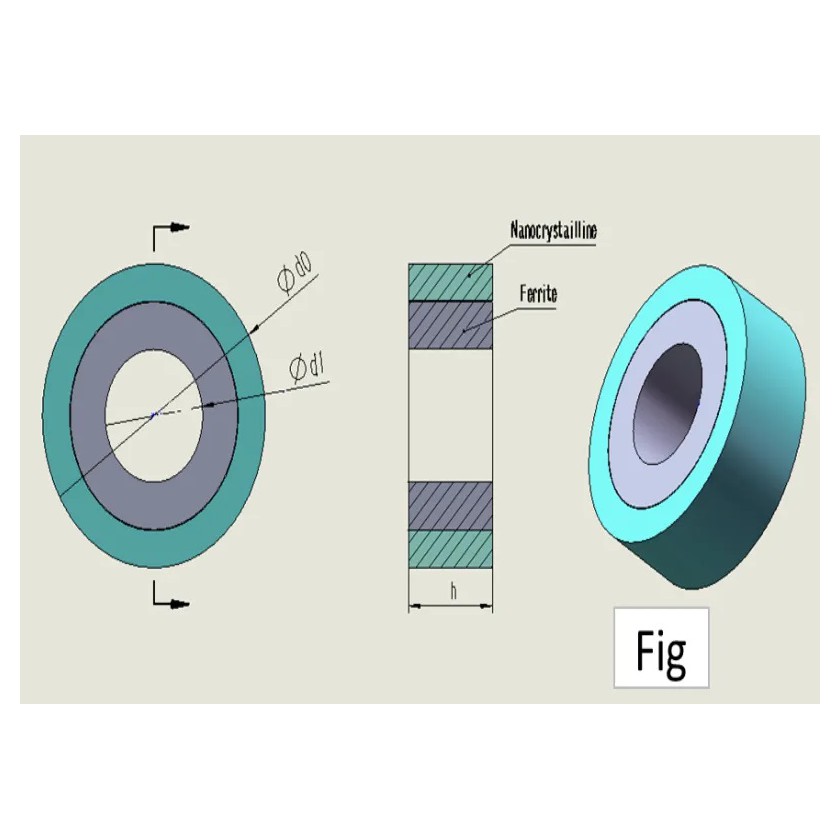

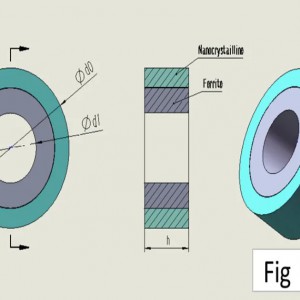

The core features a unique composite design where a toroidal nanocrystalline core houses a toroidal ferrite core. This nested configuration combines the strengths of both materials.
High-Frequency Performance?:
By integrating nanocrystalline and ferrite materials, the composite core exhibits excellent high-frequency characteristics. Nanocrystalline materials offer low core loss at high frequencies, while ferrite contributes additional inductance and saturation resistance.
Enhanced Inductance?:
The dual-layer structure significantly boosts the inductance of the core, making it ideal for applications requiring high impedance at high frequencies.
?Low Loss and High Efficiency?:
The composite material minimizes energy loss, ensuring high efficiency in power conversion and signal filtering processes.
Thermal Stability?:
Nanocrystalline and ferrite materials are known for their thermal stability, allowing the core to operate reliably over a wide temperature range.
Compact Design?:
The toroidal shape and nested design provide a compact footprint, making the core suitable for space-constrained applications.
Applications:
Power Supplies??
Utilized in switch-mode power supplies (SMPS) to filter out common-mode noise, enhancing the overall efficiency and reliability of the power supply system.
Communication Equipment?:
Ideal for telecommunication and data communication systems, where reducing electromagnetic interference (EMI) is crucial for maintaining signal integrity and system performance.
Industrial Electronics?:
Employed in industrial control systems, inverters, and motor drives to mitigate EMI and ensure compliance with electromagnetic compatibility (EMC) standards.
Automotive Electronics?:
Suitable for automotive applications, including electric vehicle (EV) charging systems and advanced driver assistance systems (ADAS), where robustness against EMI is essential for safety and reliability.
