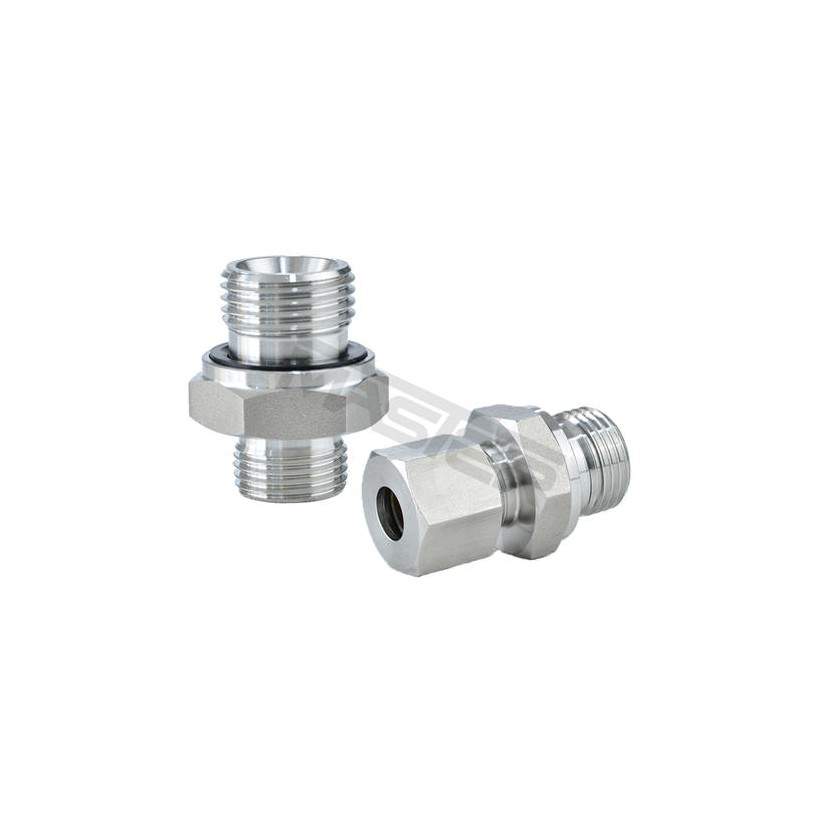

The 1CM/1DM-RN metric to BSP adapter is a male fitting featuring a male 24-degree cone metric thread on one end and a 60-degree cone BSP thread on the other. These adapters are available in various sizes and materials to accommodate different pipe dimensions and specific application requirements.
Product Parameter
NOTE | PART NO. | THREAD | TUBE O.D | DIMENSIONS | ||||||
T1 | T2 | D1 | L1 | L2 | L3 | L4 | S1 | S2 | ||
L | 1CM-12-10 | M12X1.5 | M10X1 | 6 | 23.5 | 8.5 | 8 | 23 | 14 | 14 |
1CM-14-12 | M14X1.5 | M12X1.5 | 8 | 29 | 10 | 10 | 25 | 17 | 17 | |
1CM-14-18 | M14X1.5 | M18X1.5 | 8 | 30.5 | 11.5 | 12 | 26 | 24 | 17 | |
1CM-16-14 | M16X1.5 | M14X1.5 | 10 | 30 | 11 | 11 | 26 | 19 | 19 | |
1CM-16 | M16X1.5 | M16X1.5 | 10 | 31.5 | 12.5 | 12 | 24 | 22 | 19 | |
1CM-16-18 | M16X1.5 | M18X1.5 | 10 | 31.5 | 12.5 | 12 | 27 | 24 | 19 | |
1CM-16-22 | M16X1.5 | M22X1.5 | 10 | 35 | 14 | 14 | 29 | 27 | 19 | |
1CM-18-14 | M18X1.5 | M14X1.5 | 12 | 30 | 11 | 11 | 26 | 19 | 22 | |
1CM-18-16 | M18X1.5 | M16X1.5 | 12 | 31.5 | 12.5 | 12 | 27 | 22 | 22 | |
1CM-18 | M18X1.5 | M18X1.5 | 12 | 31.5 | 12.5 | 12 | 27 | 24 | 22 | |
1CM-18-22 | M18X1.5 | M22X1.5 | 12 | 35 | 14 | 14 | 29 | 27 | 22 | |
1CM-22-16 | M22X1.5 | M16X1.5 | 15 | 32 | 13 | 12 | 28 | 24 | 27 | |
1CM-22-18 | M22X1.5 | M18X1.5 | 15 | 32.5 | 13.5 | 12 | 29 | 24 | 27 | |
1CM-22 | M22X1.5 | M22X1.5 | 15 | 36 | 15 | 14 | 30 | 27 | 27 | |
1CM-26-18 | M26X1.5 | M18X1.5 | 18 | 33.5 | 14 | 12 | 30 | 27 | 32 | |
1CM-26-22 | M26X1.5 | M22X1.5 | 18 | 36 | 14.5 | 14 | 31 | 27 | 32 | |
1CM-30-22 | M30X2 | M22X1.5 | 22 | 38 | 16.5 | 14 | 33 | 32 | 36 | |
1CM-30-26 | M30X2 | M26X1.5 | 22 | 40 | 16.5 | 16 | 33 | 32 | 36 | |
1CM-30-27 | M30X2 | M27X2 | 22 | 42 | 18.5 | 16 | 35 | 32 | 36 | |
1CM-36-33 | M36X2 | M33X2 | 28 | 43 | 17.5 | 18 | 34 | 41 | 41 | |
1CM-45-42 | M45X2 | M42X2 | 35 | 48 | 17.5 | 20 | 39 | 50 | 50 | |
1CM-52-48 | M52X2 | M48X2 | 42 | 52 | 19 | 22 | 42 | 55 | 60 | |
Looking for a trusted BSP to metric adapter manufacturer with international service experience and full production capabilities? Contact MASTER now to request a catalog, samples, or custom quote. Our team will help you select or design the right adapter for your system.
