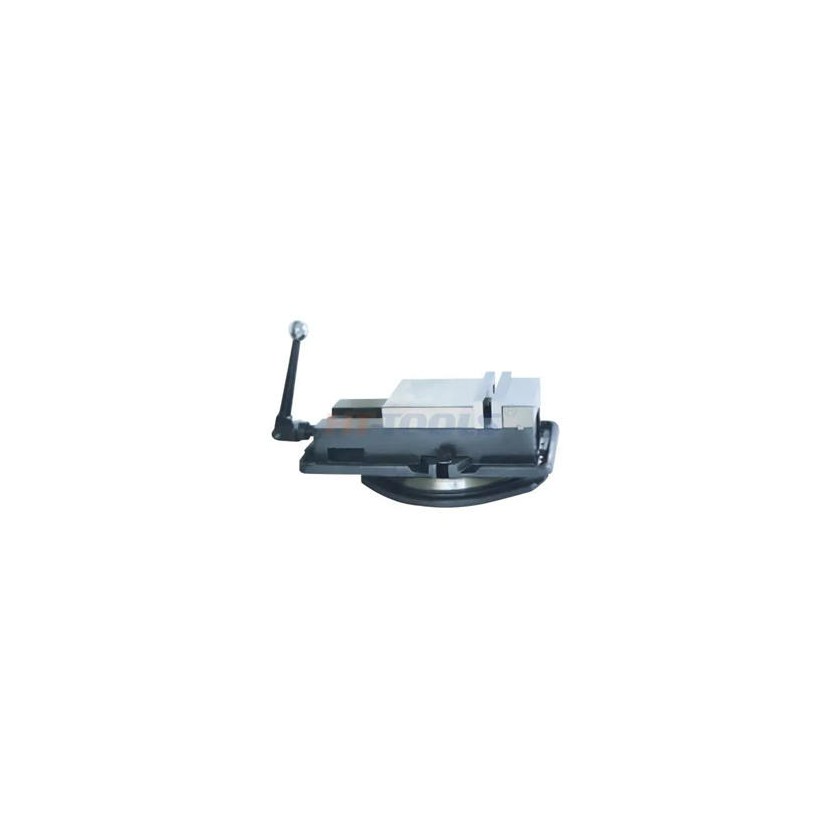

1. QM ACCU-Lock Precision Machine Vise is main attchments to precision millings grinders CNC machines, it is particularly suitable for the finishing of precision parts.
2. Parallelism 0.025mm/ 100mm, squareness 0.025mm.
3. The special segment in the movable jaw forces the vertical pressure downward when the horizontal.pressure works, so that this jaw does not lift the workpiece.
4. For positions allow extra capacity to change opening of jaw.
5. As the thrust component of the screw is equipped with thrust needle bearing if can be easily operated.
Order No | Width of Jaw(mm) | Height of Jaw (mm) | Max.Opening (mm) | GW/NW (kg) | Paking Shape | LxWxH (cm) |
QM16100 | 100 | 32 | 100 | 17/16 | paper case | 38x25x18 |
QM16160 | 160 | 45 | 140 | 40/38 | 49x32x23 | |
QM16200 | 200 | 50 | 190 | 75/69 | wooden case | 62.5x41x25.5 |
The CNC machine vise is an indispensable workholding solution for modern machining. From standard precision vises for general milling to advanced hydraulic and self-centering vises for high-speed, multi-axis machining, selecting the right vise ensures stable clamping, superior accuracy, and improved efficiency.
