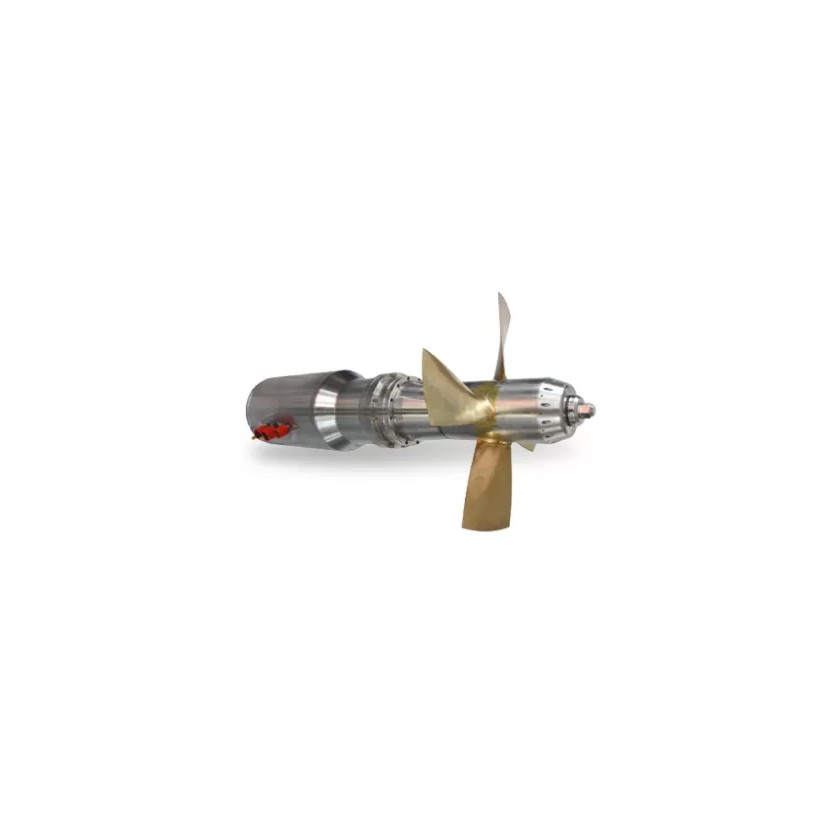

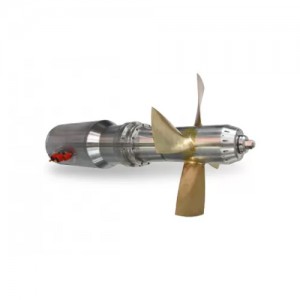

This 40kW horizontal underwater thruster is designed for heavy duty propulsion in workboats, offshore support vessels, floating platforms, and other marine systems requiring high thrust and long term stability. With a robust structure, water cooled brushless motor, and customizable control interface, it ensures efficient performance even in harsh environments.
Whether used for dynamic positioning, auxiliary propulsion, or maneuvering support, this thruster provides the power and reliability that shipbuilders and system integrators demand.
Technical Parameters
Rated Speed
800 RPM
Rated Voltage
300VDC
Motor Housing
Stainless Steel
Rotation Direction
Left/Right
Propeller Material
Stainless Steel
Temperature
Storage Temperature: -40 ~ 70℃
Operating Temperature: -5 ~ 40℃
Sealing Type
Zero Permeation Magnetic Coupling Rotating Seal Structure
Working Water Depth
300 meters
Driver
Built-in
Signal Power Supply
24VDC (± 5%), ≤ 210mA
Housing
Black
Control Mode/Speed Feedback
CAN
Key Advantages
High power output up to 40kW for demanding marine operations
Stable and efficient propulsion with direct drive technology
Fully sealed and corrosion resistant structure for long service life
Horizontal installation design, easy to integrate with vessel hulls or platforms
Customizable control options including analog, PWM, or CAN bus
Proven reliability for offshore, industrial, and defense projects
Haoye Technology, established in 2013, specializes in advanced underwater propulsion and marine drive systems. With more than a decade of research and development experience, we have delivered thousands of electric thruster and propulsion units worldwide.
