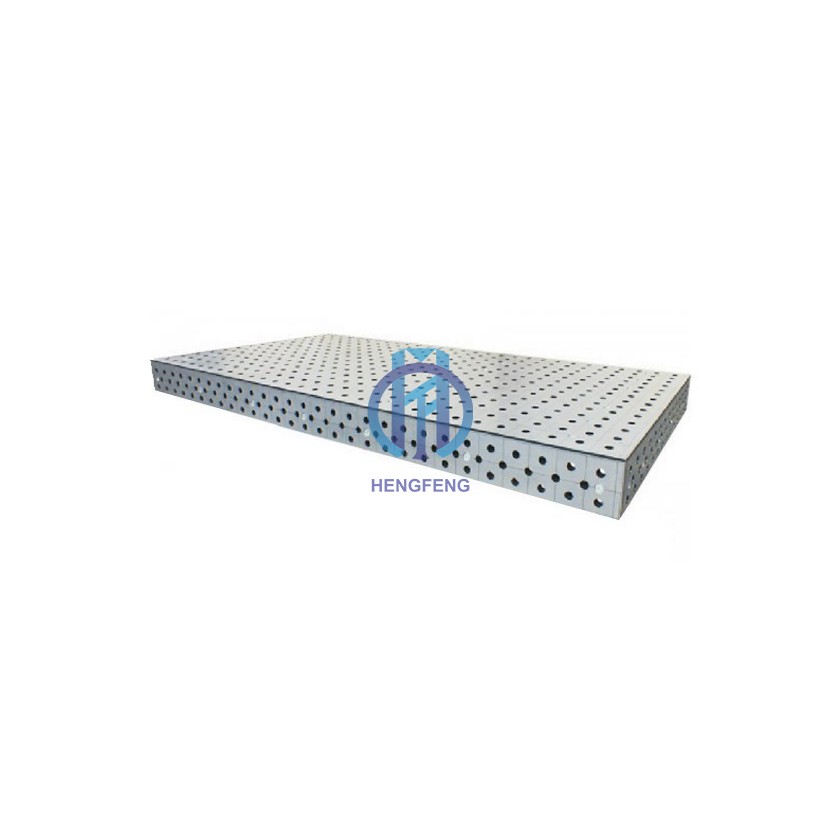

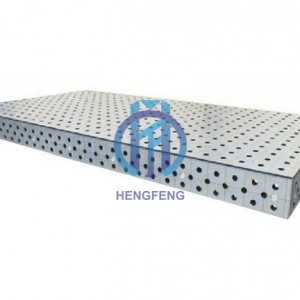

3D Welding Table is designed for the manufacture of welded products; Made from high quality cast iron or steel, it has 5 precision machined working surfaces (1 top + 4 side surfaces). 3D welding table has good durability and performance, it offers you a flexible working surfaces for clamping, assembly and fabrication of workpieces with variable design to perform your welding operations.
Material: steel welding table: Q355
cast Iron welding table: HT 250 or HT300
Hardness: steel welding table: HV150-210
casting welding table: HB170-210
nitrated steel welding table: HV450-500
nitrated casting welding table: HV400-500
Precision machined working surfaces: 5 (1 top + 4 side surface), can be expandable by support tools.
Hole diameter: 28mm
Grid spacing: 100±0.05mm
Precision: table horizontal precision: 0.1/1000mm
table vertical precision: 0.1/200mm
drilling center accuracy: +/- 0.03mm
Hole pitch: 100mm
Perimeter ruler engraving: 1mm scale
Side surfaces height: 200mm
Be reinforced on the underneath side by ribs
Surface treatment: standard/ nitrided
Loading capacity: 2 tons weight loading capacity.
Supporting: legs or steel frame
Fixtures:
1. Tools for supporting: U-shaped cube case, L-shaped cube case, Angle supporting, and Angle gauge
2.Spare parts for locating
3. Tools for clamping and fixing
4. Spare parts for locking working pieces
5. Auxiliary tools
Features OF Precision 3D Welding Table:
• Superior Quality: Made from high-quality raw material, 3D welding table offers exceptional sturdiness and stability, providing a reliable surface for precise welding.
• 3D Surface Design: The innovative 3D surface design ensures that the workpieces stay firmly in place, preventing any unwanted movement during welding.
• Versatile Fixturing Options: Equipped with wide fixturing options, 3D welding table allows you to secure various workpieces securely, accommodating complex welding projects easily.
• Heat and Spatter Resistant: The cast iron construction has excellent heat and spatter resistance, ensuring the welding table remains in pristine condition over prolonged use.
• Easy Cleanup: Due to its smooth surface, cleaning up after welding projects becomes very easy.
3D Welding Table Applications:
Aerospace Industry
Fabrication Projects
Automotive Repairs
Industrial Maintenance
Machine Manufacturing
