The energy-absorbing terminal systerm designed by Dachu has been continuously optimized, which is of substantial help to avoid or reduce the severity of the accident of hitting the end of the guardrail.
Rail Terminal Energy Absorption Systems are designed to absorb and dissipate energy during collisions or sudden impacts. The unique slotted rail design, combined with energy-absorbing materials, ensures a controlled and effective response to impact forces.

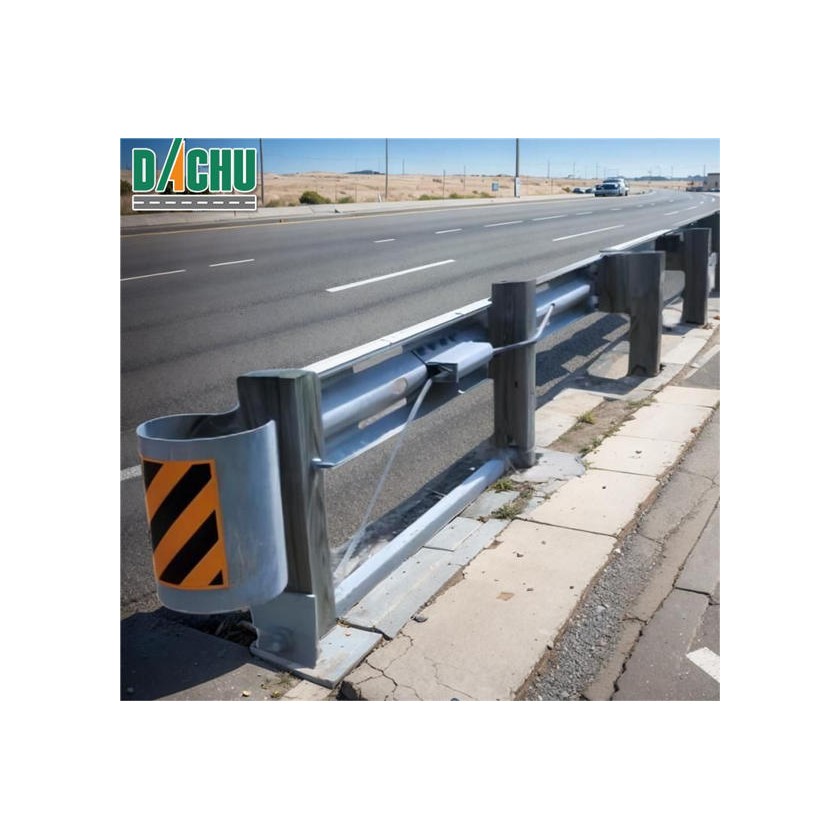

The upright post at the end part is bent, deformed and bent. The column at the energy-absorbing end is usually of the Breakaway Type, which can absorb impact energy and bend in case of impact, especially for the column that can enter the portal system. The SRT (Slotted Rail Terminal) shown in the figure below is a typical example, which is a non-redirective (Gating End Terminal). When the vehicle hits the end of the guardrail (T1, T2, T3), the first column will be bent, and the original cable will be relaxed immediately, so the tensile strength of the beam at the end can be released instantaneously.
Rail Terminal Energy Absorption Systems Distinguish Characteristics
1. No impact head.
2. Longitudinal slots on W‐beam rail element.
3. Strut and cable anchor bracket between post 1 and 2 act together to resist the cable loads.
4. Slot Guards on downstream end of slots.
5. Steel and wood post options available.
6. Parabolic flare on wood post.
7. Straight line flare on all SYTP steel post version and HBA steel/wood post version.
DaChu excels as a supplier, specializing in cutting-edge rail terminal energy absorption systems. Our strengths lie in delivering robust, durable, and easy-to-install solutions, setting us apart in the industry.
