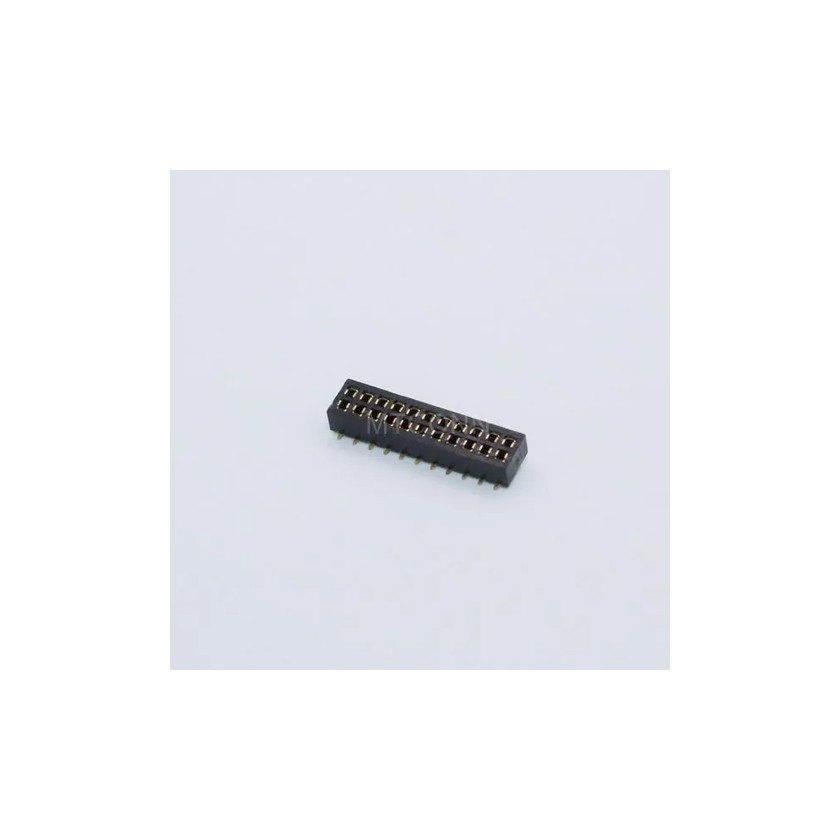

This dual-row vertical surface-mount (SMT) gold-plated header features a 1.27mm pitch design with 11 pins per row (22 pins total), optimized for high-density PCB applications. Utilizing phosphor bronze gold-plated terminals, it perfectly matches corresponding pin headers and is suitable for industrial controls, communication equipment, and consumer electronics.
Gold-plated phosphor bronze terminals: Contact resistance ≤20mΩ for stable signal transmission.
Withstands 500V AC (1 minute) with insulation resistance ≥1000MΩ for enhanced safety.
1.2mm low profile: Designed for compact devices.
180° mounting angle: Optimizes PCB space utilization.
UL94 V-0 flame-retardant housing: Black PA material ensures reliability.
Operating temperature: -40°C to +105°C for extreme environments.
Foolproof design: Prevents incorrect mating.
Female Header is a fundamental interconnect component designed to pair with pin headers in electronic devices, available in through-hole (DIP) or surface-mount (SMT) configurations with standard pitch options (1.27mm-5.08mm). Features gold-plated terminals (contact resistance ≤20mΩ), current rating of 1-3A, and operational range of -40℃~105℃. High-Quality Header Widely used in industrial controls, consumer electronics, and telecommunications for reliable mating and signal transmission.
