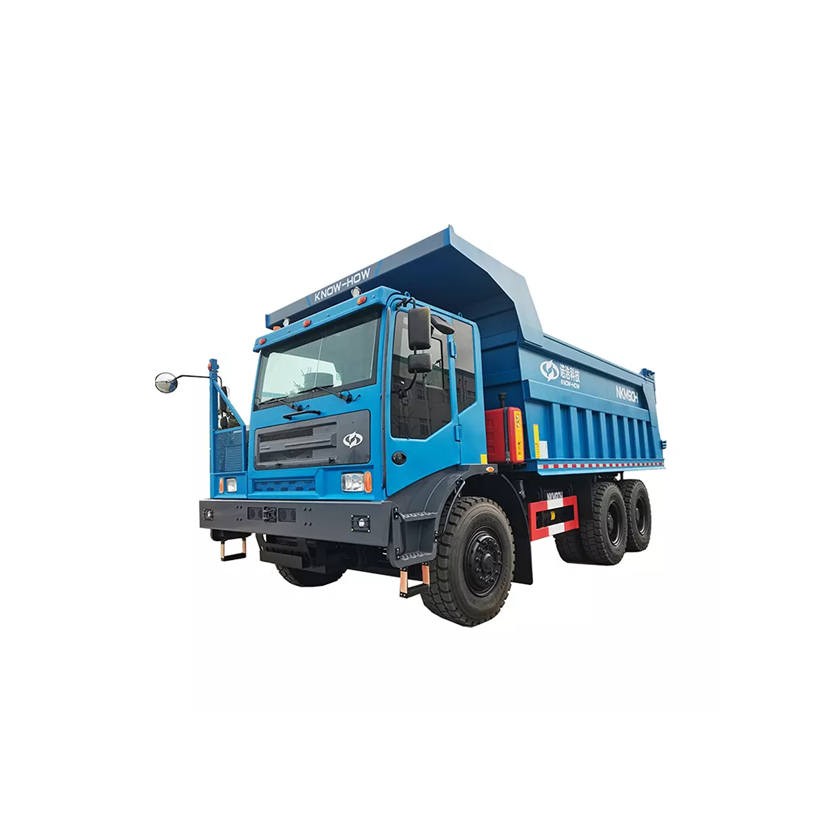

NKM90H diesel dump truck
Product Parameters
NKM90H 90 tons,rated loading 60 tons,
420hp strong power, diesel mining dump truck
Equipped FASTGEAR Mechanical automatic transmission 7DS220/MT
Vehicle Spec. | Unit | NKM90H |
Total Vehicle Weight | KG | 90000 |
Rated Loading Weight | KG | 59000 |
Tank Cubic Volume | Cubic Meter | 33(Flat),36(Stack) |
Axle Loading Front/Middle/Rear | t | 20+35+35 |
Engine Type/HorsePower | Hp | YC6K480-GT30(480hp) |
Gearbox type | / | Faust 7DS220/MT(Mechanical Transmission) |
Steering system | / | Full hydraulic steering |
Suspension System(Front/rear) | / | Hydro-pneumatic spring/balance shaft general hanging |
Braket System | / | Welded rigid tank frame /480x140 |
Vehicle Dimension | mm | 9100*3450*4130 |
Driven Type | / | 6*4 |
Max Speed | km/h | 43 |
Min Turning Radius | m | 11.5 |
Vehicle Length | mm | 9100 |
Front Middle Axle wheel base | mm | 3800 |
Middle Rear Axle Wheel Base | mm | 1560 |
Vehicle Height | mm | 4130 |
Vehicle Width | mm | 3450 |
Rear Wheel distance | mm | 2526 |
We are one of the leading dump truck manufacturer, Our KNOW-HOW dump truck has high quality and competitive price.
