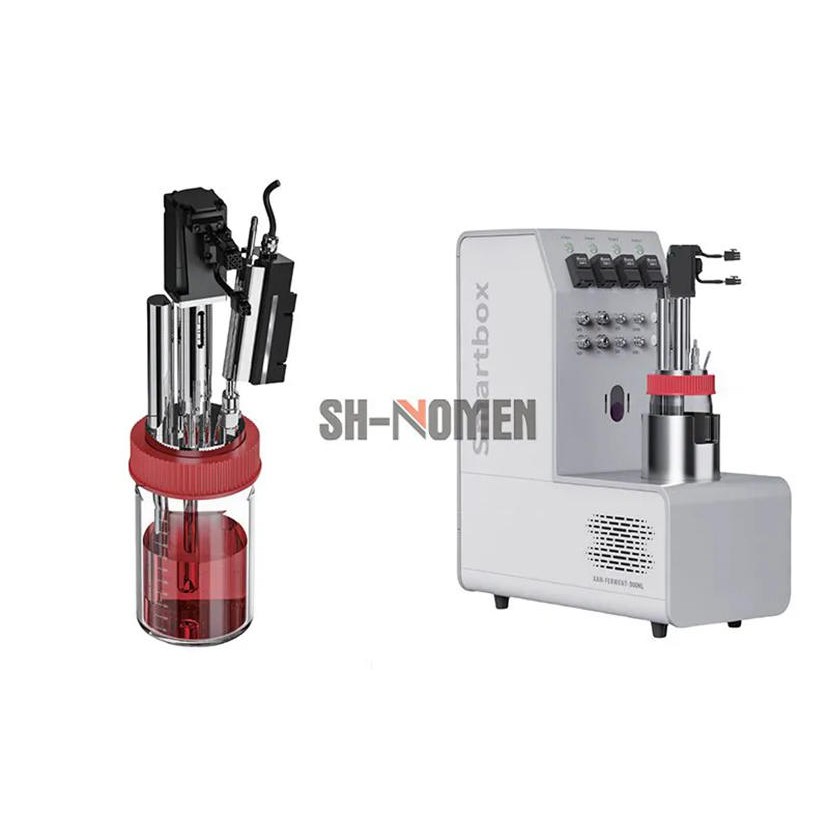

Because of its reliability, flexibility (modular design), powerful controller functions, simple operation, easy upgrade, low investment, and other characteristics, the Smartbox Glass Tank Bioreactor is favored by the majority of users. It includes all kinds of Smartbox configurations and can also be fully customized. What is more, the Smartbox series of parallel bioreactors are fully functional and easy to scale up, making this Laboratory Glass Bioreactor System the best choice for animal cell culture and microbial fermentation research and development projects.
Smartbox micro-parallel bioreactor system for cell culture/ Smartbox micro-parallel bioreactor system for microbiology | |
Parallel bioreactor | Free combination |
Software | Host computer control, other data host computer can be selected |
Sep | 500ml、1L、1.5L、2L |
Paddle | Flat blade propeller, pitched blade propeller, A315 propeller, Elephant ear paddle. |
Mix Speed | 0-1500 Revolutions per minute |
Temperature control | Temperature control without water (Peltier) |
Temperature range | 10-60°C (when indoor temperature is 25°C) |
Peristaltic pump | 4 peristaltic pumps are standard (Optional) |
Replenishment rate | 0.3-9.5 mL/h to 13-420 mL/h (Depending on tube diameter) |
Air Flow Control | TMFC; Surface or bottom ventilation TMFC |
Standard gas mixture | Air, N₂, O₂ and/or CO₂ |
Standard gas flow rate | 0.04-5 sL/h, 0.04-3.5 sL/h CO₂ 0.2-25 sL/h, 0.2-18 sL/h CO₂ |
XAN SMARTBOX
Feeding systems, samplers, various types of mixing paddles, rehydration bottles, heat exchangers, baffles and others can be added or removed at any time according to user needs, including various functional modules to meet customer specific needs: such as animal cell culture can be configured with low shear force mixing slurry.
LMS SOFTWARE
The functions of the software incude reactor parallel experiments, SCADA, data analysis and batch reporting, and the combination of Nomen Pharma LMS software and XAN biorereactor can monitor the biological process flow, which is an effective solution for cross-platform data analysis.
